Page 60 - ParkerQuickCouplingCatalog38002010

Quick Coupling Division
8145 Lewis Road • Minneapolis, MN 55427
www.parker.com/quickcouplings B-16
Hydraulic Quick Couplings
B
Hydraulics

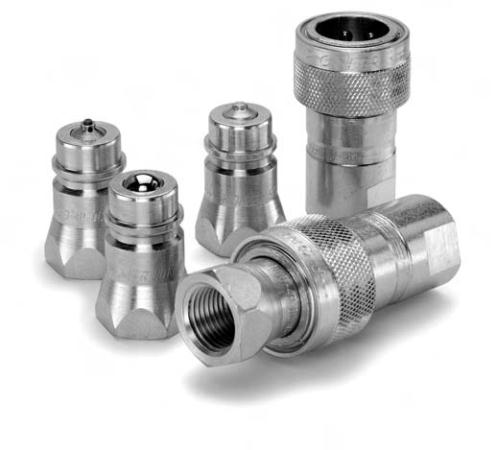

General Purpose Couplings
4000 Series
Features
Parker 4000 Series couplings feature:
• Poppet valves available to prevent uncoupled leakage.
• Ball valves available for rugged dependability in heavy-
duty hydraulic applications, within rated working pressures.
• Critical parts are induction hardened for durability.
• Dependable ball-locking mechanism holds the mating
halves together.
• Couplers and nipple are precision machined from solid bar
stock.
• For applications with residual trapped pressure use
connect-under-pressure nipples designated by the -DC
option.
• The mating 8010 series nipples meet ISO 5675
requirements.
Applications
The 4000 Series brings to the industry a proven design for
use on construction equipment, forestry equipment,
agricultural machinery, oil tools, steel mill machinery, and
other demanding hydraulic applications.
Note: Protective dust plugs and caps play a crucial role in the
life of a quick coupling and no purchase of a hydraulic quick
coupling is complete without the selection of an appropriate
dust plug and cap. See pages noted in Table of Contents for
dust plugs and caps for the Parker full line of hydraulic
couplings.
Special Order Information
Standard seal material is Nitrile, other seal options are
available. See Ordering Information at end of Section B and
Fluid Compatibility Chart at end of this catalog for assistance
in making seal selection.
Note: The part numbers for the 4000 Series Poppet Valve
design are designated with a -P. For example 4050-4P.
Performance
4000 Series (1/4", 3/8", 1/2")
Test Fluid: Oil - 200 SUS
0
10
20
30
40
50
60
70
0 2 4 6 8 10 12 14 16 18
Flow in USGPM
Pressure Drop in PSID
1/4"
3/8"
1/2"
Specifications
Body Size (in.) 1/4 3/8 1/2 3/4 1
Rated Pressure (PSI) 3000 3000 3000 3000 3000
Rated Flow (GPM) 3 6 12 28 50
Temperature Range (std seals) -40° to +250°F
4000 Series (3/4" & 1")
Test Fluid: Oil - 200 SUS
0
10
20
30
40
50
60
70
80
90
0 10 20 30 40 50 60 70
Flow in USGPM
Pressure Drop in PSID
3/4"
1"
