Quick Coupling Division
8145 Lewis Road • Minneapolis, MN 55427
www.parker.com/quickcouplings B-14
Hydraulic Quick Couplings
B
Hydraulics
General Purpose Couplings

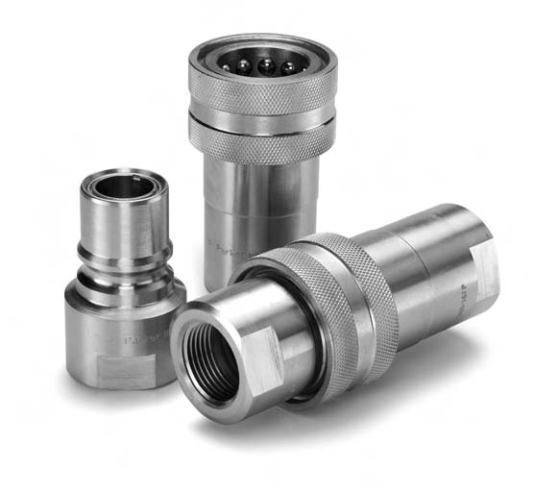

HP Series (High Pressure Coupling)
Performance
HP Series (1" & 1-1/2")
Test Fluid: Oil - 200 SUS
0
5
10
15
20
25
30
35
40
45
0 20 40 60 80 100 120 140
Flow in USGPM
Pressure Drop in PSID
1"
1-1/2"
Specifications
Body Size (in.) 1 1-1/2
Rated Pressure (PSI) 5,000 5,000
Rated Flow (GPM) 50 100
Temperature Range (std seals) -40° to +250°F
Features
• Operating pressures up to 5,000 PSI (350 Bar).
• Soft seat valving prevents leakage when coupler and nipple
are disconnected.
• Made of Carbon Steel. Exterior is Chromium-6 Free plated
for corrosion resistance.
• Smooth Flow Path Minimizes Pressure Drop.
• Nitrile Body Seal supported by PTFE washer. Backup
washer keeps seal from extruding at high pressures.
• Heat Treated Nipple and Heavy Duty Locking Collar
withstands high pressure surges, hose twist and repeated
pressure pulses.
• Nitrile Seals for General Purpose Hydraulic Applications.
