Hydraulic Quick Couplings

B

Hydraulics

General Purpose Couplings

60 Series Steam Couplings

Repair Kits

Steam Coupling

Nipple

Female Pipe Thread

D

E

F

G

Specifications

Body Size (in.)

1/4 to 1

Standard Seal Material

Ethylene Propylene

Temperature Range

up to +400°

Body

Repair Kit

Used For

Size

Part No.

3/8

H68E-67K

H3-68

3/8

H69E-67K

H3-69

Body

Part

Thread

Dimension (in.)

Size

No.

Size

Overall

Wrench Largest Wt. (LB.)

(in.)

Brass

NPTF Length Flats Diameter P/Piece

A

B

C

1/4 BH2-60-STM 1/4-18

2.26 0.81 1.14 0.30

3/8*

H3-68

3/8-18

2.50 0.88 1.77 0.50

1/2 BH4-60-STM 1/2-14

2.87 1.12 1.77 0.75

3/4 BH6-60-STM 3/4-14

3.56 1.31 2.14 1.31

1

BH8-60-STM 1-11 1/2 4.18 1.62 2.52 1.95

* See Photo and Drawing below for 3/8 inch size coupler configuration.

Body

Part

Thread

Dimension (in.)

Size

No.

Size

Overall Exposed*

Hex Largest Wt. (LB.)

(in.)

Brass

NPTF Length Length Size Diameter P/Piece

D

E

F

G

1/4 BH2-61-STM 1/4-18

1.54 0.65 0.75 0.87 0.08

3/8

H3-69

3/8-18

1.68 0.52 0.88 1.01 0.13

1/2 BH4-61-STM 1/2-14

1.94 0.69 1.12 1.30 0.24

3/4 BH6-61-STM 3/4-14

2.43 0.79 1.38 1.59 0.46

1

BH8-61-STM 1-11 1/2 2.91 0.99 1.62 1.88 0.76

A

C

B

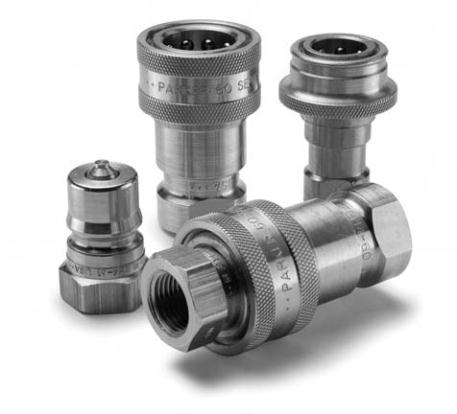

Coupler - 3/8 Inch

Configuration

Female Pipe Thread

A

C

B

* This dimension represents the portion that is exposed when the nipple is

inserted into the mating Parker Coupler.

Coupler

Female Pipe Thread
