Pneumatic Quick Couplings
A
Pneumatics
Body Size 1/4” 3/8” 1/2”
Rated Pressure 300 300 300
Temperature Range (°F) 0 to 160 0 to 160 0 to 160
Vacuum Service Not Recommended
Tool-Mate Series Exhaust (1/4”, 3/8” & 1/2” sizes)
0
20
40
60
80
100
120
140
160
180
0 5 10 15 20
Air Flow in SCFM
1/2" PBS
3/8" PBS 1/4" PES
1/4" PBS
Pressure Drop in PSID
100 PSI Inlet Pressure

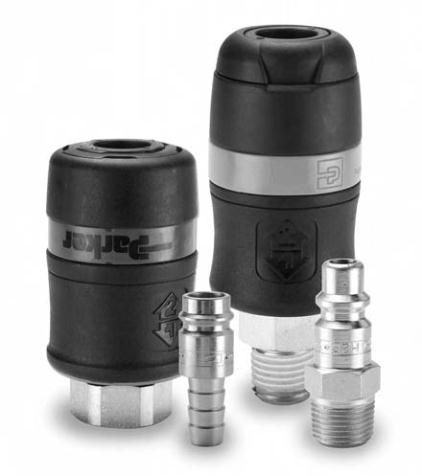

Features
• Exhaust style Tool-Mate couplers are lightweight, easy to
operate, and non-marring with easy, push-to-connect action
and one-handed disconnection.
• Couplers are constructed of black Polyamide material;
springs, balls, and pins are stainless steel in the PES
series and 1/2" PBS series; and locking fingers in the PBS
series are made of polyacetate. End ports are galvanized
steel.
• PBS Tool-Mate Series is built to the Industrial Interchange
profile identifiable with a Yellow ring around the body.
• PES Tool-Mate Series is designed for use with high flow RF
Series nipples and is identifiable with a Green ring around
the body.
• Exhaust style Tool-Mate couplers meet the ISO 4414
specification to allow trapped air pressure to be vented
prior to disconnection.
• Black body designates exhaust style coupler.
Operation
• Push-to-Connect design for easy one hand operation.
• Pull the body in the direction of the arrow marked 1, this will
safely vent the downstream pressure.
• Push the body in the direction of arrow 2 to disconnect at 0
pressure.
Special Purpose – Exhaust - Non Marring
Tool-Mate Series
Performance How To Order
Specifications
Port Size (1/16 of an inch)
4 - 1/4”
6 - 3/8”
8 - 1/2”
12 - 3/4”
Tool-Mate Series (Exhaust)
PBS - Industrial Interchange
PES - RF Interchange
Unit
1 - Valved Coupler
Port Configuration
FP - Female Pipe
MP - Male Pipe
Body Size
25 - 1/4”
37 - 3/8”
50 - 1/2”
PBS - 251 - 4 FP
