Quick Coupling Division
8145 Lewis Road • Minneapolis, MN 55427
www.parker.com/quickcouplings A-33
Pneumatic Quick Couplings
A
Pneumatics
Features

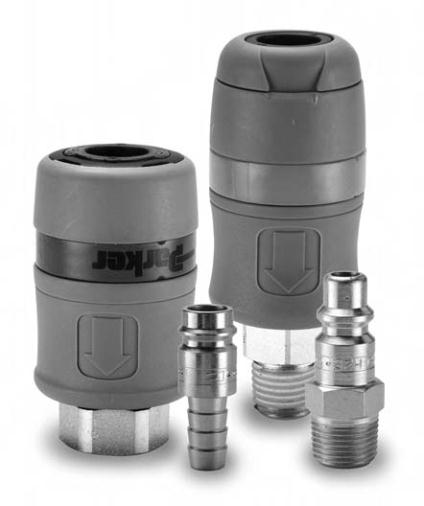

• Standard style Tool-Mate couplers are lightweight, easy to
operate, and non-marring with easy, push-to-connect action.
• Couplers are constructed of Polyamide material; springs,
balls, and pins are stainless steel; and locking fingers are
made of polyacetate.
• PBH Tool-Mate Series is built to the Industrial Interchange
profile identifiable with a Yellow ring around the body.
• PER Tool-Mate Series is designed to use with Parker's high
flow RF Series nipples and is indentifiable with a Green ring
around the body.
• Grey body designates standard non-venting style coupler.
Operation
• Push-to-Connect design for easy one hand operation.
• Pull in the direction of the arrow indicated on the body of the
coupler to release the nipple.
Specifications
Body Size 1/4” 3/8”
Rated Pressure 300 300
Temperature Range (°F) 0 to 160 0 to 160
Vacuum Service Not Recommended
Tool-Mate Series Standard (1/4î & 3/8” sizes)
0
10
20
30
40
50
60
70
0 5 10 15 20
3/8" PBH
1/4" PER
1/4" PBH
Pressure Drop in PSID
100 PSI Inlet Pressure
Air Flow in SCFM
Special Purpose – Standard - Non Marring
Tool-Mate Series
Performance
Port Size (1/16 of an inch)
4 - 1/4î
6 - 3/8”
8 - 1/2”
Tool-Mate Series (Non-venting)
PBH - Industrial Interchange
PER - RF Interchange
Unit
1 - Valved Coupler
Port Configuration
FP - Female Pipe
MP - Male Pipe
Body Size
25 - 1/4”
37 - 3/8”
PBH - 251 - 4 FP
How To Order
