Pneumatic Quick Couplings
A
Pneumatics
General Purpose – Push-To-Connect

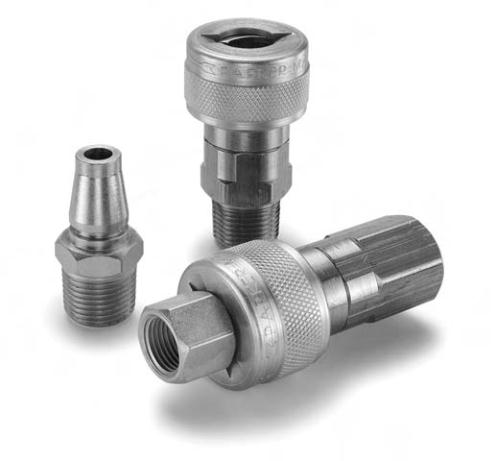

Twist-Lock
Features
• Push-to-Connect design for easy one hand operation.
• A variety of port configurations are available to meet
specific needs.
• Standard Seals are Nitrile.
• Zinc bodies with Chromium-6 Free plated steel sleeves
and nipples.
• Interchanges with Schrader Twist-Lock style couplings.
Performance
Twist-Lock Series (1/4" size)
0
5
10
15
20
25
30
35
0 5 10 15 20
Air Flow in SCFM
1/4"
Pressure Drop in PSID
100 PSI Inlet Pressure
80 PSI Inlet Pressure
Specification
Body Size (in.) 1/4 1/2
Rated Pressure (PSI) 300 300
Temperature Range (Nitrile seal) -40° F to +250° F.
Locking Device CAM
Vacuum Service Not Recommended
Port Configuration
FP - Female Pipe
MP - Male Pipe
HB - Standard Hose Barb
PL - Push-Lok Hose Barb
TL Series
Port Size (1/16 of an inch)
Body Size
25 - 1/4"
50 - 1/2"
T L - 2 5 1 - 4 F P
Unit
1 - Valved Coupler
4 - Unvalved Nipple
HowTo Order
Operation
• Engineered for speedy coupling and uncoupling. To lock –
push in; to unlock – give the coupler sleeve a 1/8 turn.
Designed to protect against accidental uncoupling.
