Quick Coupling Division
8145 Lewis Road • Minneapolis, MN 55427
www.parker.com/quickcouplings F-15
F
Diagnostic
The SensoControl® Serviceman™/Service Master
Components and Accessories – Transducers
Special Note: All Parker SensoControl hand-held diagnostic meters are now equipped with the same 5-pin push-pull style connector ports. Accessories such as
pressure sensors, temperature sensors, flow meters, tachometers and cables are all interchangeable between Serviceman and the Parker Service Master meters.

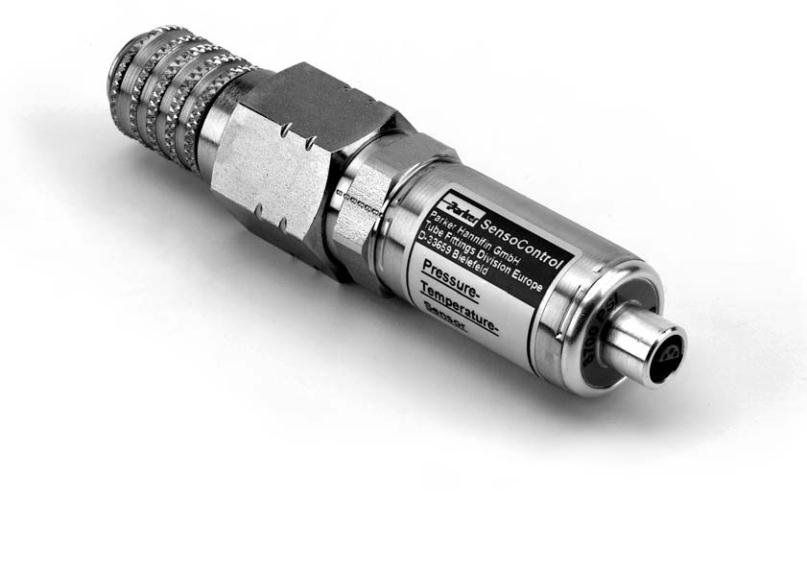

Pressure Transducer Options
Materials of Construction
Transducer . . . . . . . . . . . .Stainless steel
Diaphragm . . . . . . . . . . . .Stainless steel
Coupler . .Chromium-6 Free Plated steel
Seal . . . . . . . . . . . . . . . . . .Fluorocarbon
Temperature Range
Working . . . . . . . . . . . . . . . .-4° to 185°
Fluid . . . . . . . . . . . . . . . . . .-13° to 221°
Storage . . . . . . . . . . . . . . . .-40° to 257°
Output
Accuracy . . . . . . . . . . . . . . . . .0.5% FS
Load . . . . . . . . . . . . . . . . . . . .2m ohms
Response time . . . . . . . . . . . . . . .<1 ms
Output signal to noise . . . . . . . .0.1%FS
Resonant frequency . . . . . . . . .100 KHz
Voltage Requirement
7 to 12 VDC excitation voltage
Permissible ripple . . . . . . . . . . . .±2% ss
Current requirement . . . . . . . . . . . .5 mA
Transducer
Technical Data
PD -0100 PD -0600 PD -1500 PD -4000 PD -6000
Measuring Range (Pressure) -14.5 to 235 PSI 0 to 870 PSI 0 to 2175 PSI 0 to 5800 PSI 0 to 8700(1) PSI
Color Code Blue Green Yellow Orange Red
Measuring Range (Temp.) -13°F to 221°F -13°F to 221°F -13°F to 221°F -13°F to 221°F -13°F to 221°F
Max. Overload Pressure 290 PSI 1450 PSI 3625 PSI 14500 PSI 14500 PSI
Output Signal (Volts) -0.2 to 2 0 to 3 0 to 3 0 to 3 0 to 3
Hysteresis (% FS Typical) 0.1 0.05 0.1 0.08 0.05
Repeatability (%FS Typical) 0.08 0.13 0.13 0.1 0.1
Non-conformity (%FS) 0.25 0.2 0.2 0.28 0.25
Response Time 1 ms 1 ms 1 ms 1 ms 1 ms
Excitation Voltage 7-12 VDC 7-12 VDC 7-12 VDC 7-12 VDC 7-12 VDC
(1) Maximum Rated Pressure for PD Series Couplers is 6000 PSI.
(2) Maximum Rated Pressure for EMA Series Couplers is 9000 PSI.
Pin Mark Wire Colors
1 P yellow
2 T white
3 + brown
4 – green
5 SK grey
Cable End
(Pin Out)
• Five measurement ranges:
Vacuum to 8,750 PSI
• Color coded for easy identification
• Corrosion resistant stainless steel housing
• Accuracy of .5% Full Scale (FS)
• Available with PD, PDP or EMA style
diagnostic couplings
Diagnostic Products
“ ” in the Part Number Represents:
TA = PD Style
PTA = PDP Style
TEMA3 = EMA3 Style (Female)
