Valves
Pressure/Vacuum Relief Valves
PV Series

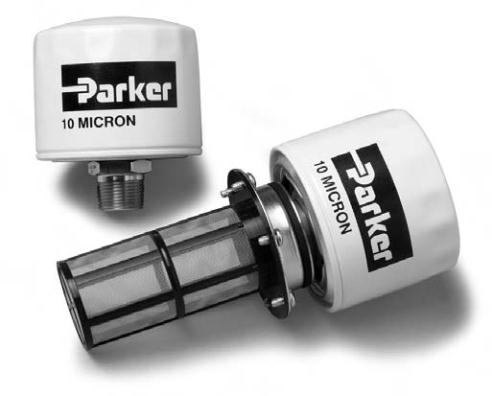

PV Series
is an economical Pressure/Vacuum Relief Valve
used to maintain positive pressure in hydraulic reservoirs.
The large filter area makes this valve an ideal choice for use
in heavily contaminated environments. The optional bayonet
type mount allows the valve to be installed in the tank filler
port, eliminating the need for an extra port. In this configura-
tion, the valve also serves as a filler cap.
Features
1.
Disposable spin-on automotive type, field
replaceable filter (240 sq inches).
2.
Several pressure relief settings.
3.
Economic design.
4.
Optional bayonet style allows mounting in filler port with
valve also functioning as filler cap.
Specifications
PV Series
PV - Bayonet style
Filter Rating
10 micron, nominal
(240 sq inches)
Pressure Relief Setting 5 PSI through 30 PSI
5 and 10 PSI
(in 5 PSI increments)
Vacuum Relief Setting
0.3 PSI
Weight
1.0 lb
Mounting
Male ORB, SAE threads
Bayonet style
Male pipe threads
with tank receptacle,
gaskets & screws
(optional strainer basket)
Replacement Filter
7312-009
Part Number
FITTING SIZE:
Blank
= Bayonet style
8
= 1/2”
12
= 3/4”
PV SERIES
FITTING / MOUNTING STYLE:
BA
= Bayonet mount
MP
= Male pipe thread
MO
= Male O-ring Boss, SAE threads
CRACK PRESSURE (PSI):
05
(PV, PV-Bayonet)
10
(PV, PV-Bayonet)
15
(PV)
20
(PV)
25
(PV)
30
(PV)
BAYONET OPTION ONLY:
RO
= With receptacle, gaskets and screws
RB
= With receptacle, gaskets, screws
and strainer basket
P V -
✱ ✱
-
✱ ✱ ✱ ✱
-
✱ ✱
Flow Data
PV Pressure-Vacuum Relief Valve
0
5
10
15
04
03
02
01
0
Flow in SCFM
Pressure drop is pressure relief valve crack pressure until
pressure drop curve increases above pressure relief crack pressure.
Pressure Drop in PSID
Vacuum
Relief
Pressure
Relief
*
*
Ordering Information
