Quick Coupling Division
8145 Lewis Road • Minneapolis, MN 55427
www.parker.com/quickcouplings E-5
Check Valves
E
Valves
DT Series
Features
1. Compact Design. Easy to plumb into tight circuits.
2. All steel construction. No internal gaskets or seals
to wear out.
3. One-piece body eliminates threads and seals that
may be potential leakage points.
4. Smooth flow stream. Poppet spring is isolated from
flow stream.
5. Heat treated poppet to resist damage from shocks
and surges.
6. Variety of end fittings.
7. Optional crack pressures available from 1 to 200 PSI.
8. Chromium-6 Free plated exterior finish.
9. Nitrile O-Ring included on MO and MS fittings.
10. Captive O-Ring Groove is standard on
MS end fittings.
F L OW
F L OW F L OW
F L OW F L OW
DT-MFMF
Male Flare 37° JIC Inlet to Male Flare 37° JIC Outlet
DT-MFMO
Male Flare 37° JIC Inlet to Male O-Ring Boss Outlet
DT-MOMF
Male O-Ring Boss Inlet to Male Flare 37° JIC Outlet
F L OW
DT-MOMS
Male O-Ring Boss Inlet to Male Seal-Lok ® Outlet
DT-MSMO
Male Seal-Lok ® Inlet to Male O-Ring Boss Outlet
DT-MSMS
Male Seal-Lok ® Inlet to Male Seal-Lok ® Outlet

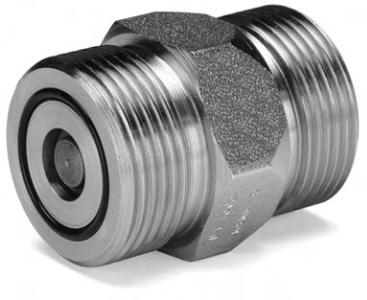

Parker DT Series Check Valves Offer
the Features of a Compact Body Size, and
5000 PSI Maximum Operating Pressure
The DT Series check valves utilize the dependable, internal
design features found in Parker check valves, but with the
added benefit and convenience of compact design. Sizes are
available from 1/4" to 1-1/4" with six different Fitting Styles.
The DT Series expands Parker's high quality product line of
versatile and efficient check valves.
