Swivels
D
Swivels
How to Order
S Series
Port 1
Port 2
Retaining Ring
Retainer
O-Ring
Back-Up Ring
Flow Holes
Housing
O-Ring
Back-Up Ring
Shaft
O-Ring
O-Ring

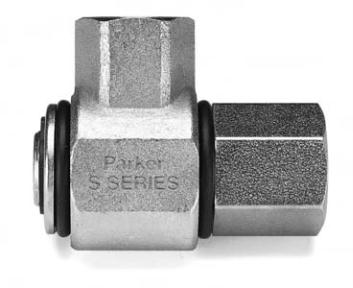

Parker S Series Swivel designator
* Contact the Division for Price and Availability
Housing Port Size (1/16 of an inch)
Material and Finish:
Blank = Carbon Steel (12L14)
w/Chromium-6 Free Plating
NI =
Carbon Steel (12L14)*
Nickel Plating
Seal Code:
Blank = Nitrile (Standard)
E = Ethylene Propylene
V = Fluorocarbon
Shaft Port Size (1/16 of an inch)
S Part Number:
S 21 02 V 8 8 NI
- -
Housing Port Configuration:
01 = Male NPTF
02 = Female NPTF
03 = Male JIC 37 Degree
05 = Male SAE O-Ring Straight Thread
07 = Female NPSM Pipe Swivel
10 = Female SAE Straight Thread
Shaft Port Configuration:
21 = Male NPTF
22 = Female NPTF
23 = Male JIC 37 Degree
25 = Male SAE O-Ring Straight Thread
