Thermoplastic Couplings
Quick Coupling Division
8145 Lewis Road • Minneapolis, MN 55427
www.parker.com/quickcouplings
C-7
C
Thermoplastics
Push-To-Connect

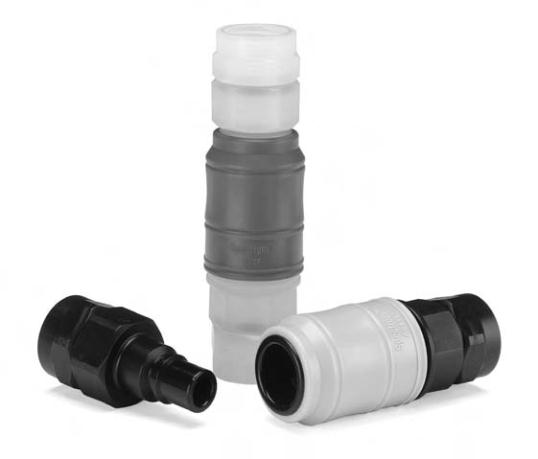

Spectrum™ Series
Applications
Parker’s Spectrum™ Series couplers are the most advanced
engineered thermoplastic couplings available. Spectrum
Series couplings combine compact size, high flow capability,
and light weight design to meet a broad range of coupling
applications. Three material combinations allow the couplings
to be used in markets as diverse as chemical processing,
automation equipment, semi-conductor and food processing.
Spectrum Series can be used in many applications previously
reserved for stainless steel couplings.
Features
• Excellent Chemical Compatibility
• Three Material Combinations:
Acetal/SS, PVDF/SS and PVDF/PEEK™
• High Flow Capacity
• Easy Push-To-Connect Operation
• Available Valved and Unvalved
• Flexible Modular Design
• Four Point 360° Locking Mechanism
• Temperatures Up To 250° F
• Panel Mounting Option
Performance
Spectrum Series (1/8")
Test Fluid: Water
0
5
10
15
20
25
0
0.5
1
1.5
2
Flow in USGPM
Pressure Drop in PSID
Double
Shut Off
Single
Shut Off
Straight
Through
Spectrum Series (3/8")
Test Fluid: Water
0
5
10
15
20
25
30
35
40
0
1
2
3
4
5
6
Flow in USGPM
Pressure Drop in PSID
Double
Shut Off
Single
Shut Off
Straight
Through
2 C V
V - Valved
S - Straight thru
Body Size
2 - 1/8 Inch
6 - 3/8 Inch
C - Coupler
N - Nipple
P - Panel mount coupler
A
A - Acetal
P - PVDF
K - PVDF/PEEK™
04 - FP -
FP - Female pipe
MP - Male pipe
HB - Standard hose barb
BHB - Bulkhead hose barb
Port Size 16
ths
-
S
Spectrum Series Thermoplastic Couplings
HowTo Order
Specifications
Acetal/SS
PVDF/SS
PVDF/PEEK™
(black with grey sleeve)
(translucent with green sleeve)
(translucent)
Body Size
1/8
3/8
1/8
3/8
3/8
Pressure Range
0-145 psi
0-145 psi
0-115 psi
0-115 psi
15-115 psi
(0-10 bar)
(0-10 bar)
(0-8 bar)
(0-8 bar)
(1-8 bar)
Temperature Range 0° F to 180° F 0° F to 180° F 0° F to 250° F 0° F to 250° F 0° F to 250° F
(-20° C to +80° C)
(-20° C to +80° C)
(-20° C to +120° C)
(-20° C to +120° C)
(-20° C to +120° C)
Rated Flow
1.5 GPM
4.5 GPM
1.5 GPM
4.5 GPM
4.5 GPM
(5.6 lpm)
(17 lpm)
(5.6 lpm)
(17 lpm)
(17 lpm)
Body Material
Acetal
Acetal
PVDF
PVDF
PVDF
Spring Material
316 SS
316 SS
316 SS
316 SS
PEEK™
Seal Material
Nitrile
Nitrile
Fluorocarbon Fluorocarbon
Fluorocarbon
