Thermoplastic Couplings
Quick Coupling Division
8145 Lewis Road • Minneapolis, MN 55427
www.parker.com/quickcouplings C-4
C
Thermoplastics
Push-Button
PPM & PPL Series
Interconnects with similar push button couplings
Body Valved or
Size Non-Valved Part Number Port End L W H Part Number Port End L W H
1/8 Valved PPM-121-2MP 1/8” NPT 1.00 0.62 0.80 PPM-121-2MBT 1/8” BSPT 1.00 0.62 0.80
1/8 Valved PPM-121-4MP 1/4” NPT 1.10 0.62 0.80 PPM-121-4MBT 1/4” BSPT 1.10 0.62 0.80
1/8 Non-Valved PPM-123-2MP 1/8” NPT 1.00 0.62 0.80 PPM-123-2MBT 1/8” BSPT 1.00 0.62 0.80
1/8 Non-Valved PPM-123-4MP 1/4” NPT 1.10 0.62 0.80 PPM-123-4MBT 1/4” BSPT 1.10 0.62 0.80
1/4 Valved PPL-251-4MP 1/4” NPT 1.15 0.75 0.93 PPL-251-4MBT 1/4” BSPT 1.15 0.75 0.93
1/4 Valved PPL-251-6MP 3/8” NPT 1.15 0.75 0.93 PPL-251-6MBT 3/8” BSPT 1.15 0.75 0.93
1/4 Non-Valved PPL-253-4MP 1/4” NPT 1.15 0.75 0.93 PPL-253-4MBT 1/4” BSPT 1.15 0.75 0.93
1/4 Non-Valved PPL-253-6MP 3/8” NPT 1.15 0.75 0.93 PPL-253-6MBT 3/8” BSPT 1.15 0.75 0.93
PPM & PPL Series
Couplers - Male Thread

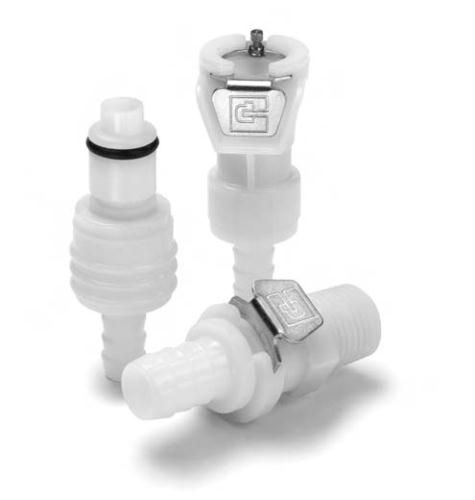

PPM & PPL Series Couplings are general purpose,
thermoplastic couplings. The push-to-connect feature and
push-button release provides simple one-handed operation.
The couplers and nipples are available with or without
valves. Standard seal material is Nitrile.
Applications include:
• Medical Devices
• Laboratory Equipment
• Chemical Processing
• Food and Beverage
• Industrial
• Process Equipment
L
H
W
Male NPT Thread Male BSPT Thread
PPM & PPL Series Specifications
Flow Capacity Rated Pressure Temperature Material: Body Material: O-ring
Latch & Springs
PPM Series 1/8” -40° F to +180° F Acetal
PPL Series 1/4” -40° C to +82° C Copolymer
Stainless Steel Nitrile Vacuum to 120 PSI
