Hydraulic Quick Couplings
B
Hydraulics
Features

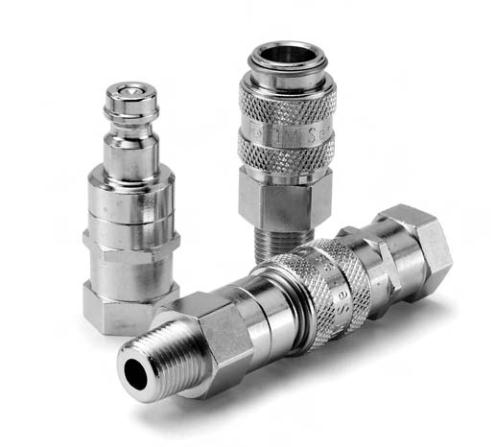

• Parker DM Series offer double shut-off valving and push-to-
connect operation in a small envelope size.
• They are constructed of nickel plated brass and are
available in 1/8" body size only.
• Standard seals are Fluorocarbon, but other seal material is
available upon request. See the Coupling Selection and
Ordering Information Guide at the beginning of Section A
and the Fluid Compatibility Chart at the end of this catalog
for optional materials.
Applications
Typical applications include dental equipment, lubrication
equipment, fluid transfer and coolant lines.
Special Purpose–Double Shut-Off
DM Series
Performance
DM Series (1/8")
Test Fluid: Water
0
2
4
6
8
10
12
0
0.2
0.4
0.6
0.8
1
1.2
Flow in USGPM
Pressure Drop in PSID
1/8"
HowTo Order
DM - 12 1 - 4
Port Size (1/16 of a inch)
1= Valved Coupler
2= Valved Nipple
DM Series
1/8" Body Size
FP
FP= Female NPT
MP= Male MPT
Specifications
Body Size (in.)
1/8"
Temperature Range
-15°F to +400°F
Rated Pressure
250 PSI
Locking Device
5 Balls
Rated Flow (GPM)
0.8
