Twin-Line and Multi-Line Hose Constructions
Twin-Line/Multi-Line, Coils, Bundles, Harnesses, Pre-Formed Hoses
Orange Cover
Non-Conductive
Other hose and hose/tubing configurations
available. Contact factory for details.

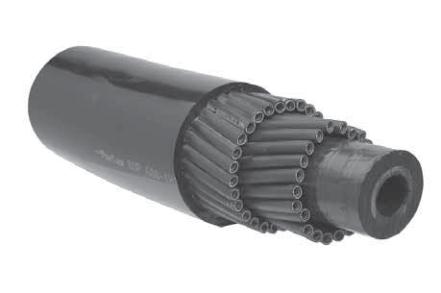

• Parflex hose bundles are designed for compact size, but
optimal performance.
• Parflex harnesses are designed for customer's
application to eliminate scrap, reduce part numbers and
streamline installation.
• Parflex pre-formed hoses are designed to a customer's
application, often replacing expensive metal hoses or
adapters in tight spaces.
* ALL ARE CUSTOM-DESIGNED TO CUSTOMER NEED.
CONTACT FACTORY FOR DETAILS.
Retractable Coiled Hose
Single
Hose
Part
Number
Two
Hoses
Bonded
Together
518C-4 518C-4-4
518C-5 518C-5-5
518C-6 518C-6-6
518C-8 518C-8-8
Single
Hose
Part
Number
Two
Hoses
Bonded
Together
540N-4 540N-4-4
540N-5 540N-5-5
540N-6 540N-6-6
540N-8 540N-8-8
Parflex Twin-Line consists of two identical hoses
permanently joined the entire length, offering a
compact system for easy installation and smooth
operation.
Parflex Multi-Line consists of two or more
hoses in various combinations of sizes and types.
Successful Applications:
• Lift Trucks
• Hydraulic Cranes
• Aerial Lifts
• Limited to a max width of 10" & up to 10 hoses.
Separating Bonded Hoses:
For separating instructions and tooling see:
Twin/Multi-Line Separation Instructions on page 237.

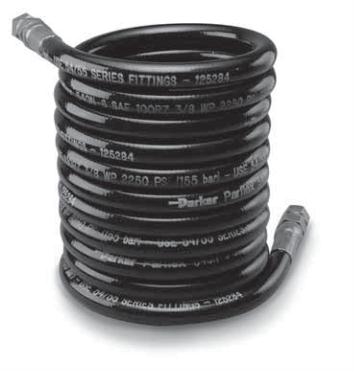

Parflex retractable coiled hose is designed to meet a customer's
unique application needs. Contact factory for details.
540N -3, -4, -5, -6, -8
520N -3, -4, -5
1035HT -4, -6
580N/588N -4, -6, -8
Hose Bundles, Harnesses,
Pre-formed Hoses
