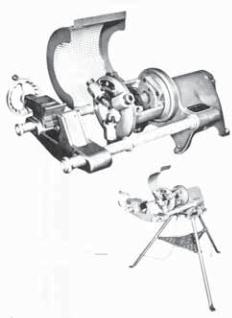

• Facilitates the attachment

of Field Attachable hose

fittings.

• Handles all types of hose and

fittings in sizes

-3 through -32 I.D.

• Handles standard bent tube

elbows.

• 110V, 30 amp, universal AC-DC

motor.

NOTE:

432 is supplied complete with foot switch

and safety guard.

Part Number

Model 432 Hozembler........................................................

432-115V

(complete with vise and all adapters)

Mounting Stands ....................................................................

662451

Replacement Parts

Hose Vise (complete with 662453 and 662454) .....................

662452

Hose Vise Jaw Plate...............................................................

662453

Hose Vise Jaw Adapter ..........................................................

662454

Chuck Jaws ............................................................................

662455

Request Bulletin 4497-B2 for operating instructions.

NOTE:

Hozembler and all components available

through Parker Hose Products Division

Plastic Tube Cutter

• Easy to handle

• Razor-edged tube cutter

• Closes automatically,

assuring clean and

square cuts.

• May be used with

polyethylene,

polypropylene, nylon

and other plastic tubing up to 5/8".

Replacement blades –

PTC-001-RB

Part Number PTC

Karrykut

• Portable power saw

• Makes up hose assemblies on

the job.

• Hardened steel blade

powered

• 110V (13 amp) universal

AC-DC motor.

• Hand grip, trigger control.

• Unique clamp which spreads

hose as it is cut to prevent

binding of blade.

• Clean cutoff of rubber or

cotton covered, wire or fabric

reinforced hose

• -4 through -32 inside

diameter.

Part Number

Universal Clamp Attachment*.................................

631076-PFD

Replacement Blade (8" with 5/8" arbor size) ..........

580661-PFD

Replacement Power Saw (less clamp and Blade)...

631140-PFD

*May be used with any portable power saw unit having a 5/8" arbor, 8"

blade capacity.

Part Number 631075-PFD

Cutoff Tools, Vise Blocks, Hosembler

Part Number 316-PFD

Hose Cutoff Machine

• Power unit for quick, easy cutting

of cotton or rubber covered fabric

braid or wire reinforced hose.

• Equipped with 1-1/2 HP, 3650 RPM,

115/230V single phase electric mo-

tor wired for 115V.

• Belt driven cutting wheel of high

speed steel, hardened and ground

for smooth, dust-free, long-lasting

service.

• Moving parts shielded by guards.

• Includes a Smooth Cutting Blade (8"

with 5/8" arbor size).

Model 332T-115V will cut:

• two wire braid, 1-1/4" maximum

• one wire braid, 2" maximum

• four spiral, 1-1/4" maximum

• recommended for PTFE Hose

Replacement Smooth Cutting Blade

(8" with 5/8" arbor size) ............................................580661-PFD

Replacement Scallop Cutting Blade................................... 24398

Part Number 332T-115V-

PFD

Hose Cutoff Tool

• Small

• Easy to use

• Manually operated unit for quick cutting

of Parflex hoses (not recommended for

wire reinforced).

Vise Blocks

For Parflex Hose

Part Number

VBS

– For Hose Sizes

3, 4, 5, 6, and

8; 3/16", 1/4",

5/16", 3/8" and

1/2" I. D.

VBL

– For Hose Sizes

12 and 16; 3/4"

and 1" I. D.

Part Number VBS & VBL

Part Number 432
