Karrykrimp I & II, Parkrimp I & II, Superkrimp

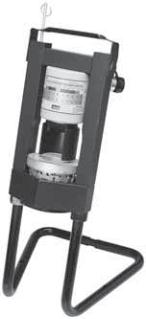

Karrykrimp
Karrykrimp, with crimping capability up to
1-1/4", SAE 100R1, 100R2, 100R7, 100R8,
100R9 and 100R14, gives you true field-
crimping capability. Utilizing Parker’s
dies (the same as Parkrimp I and II),
this lightweight machine is easily carried to
the job site for quick, easy field assemblies
— when downtime is critical. The Karrykrimp
unit puts hose assembly fabrication where
you need and want it, on the spot.
Part No.
82C-061-PFD ........... Karrykrimp, two-piece
stand, silver die ring,
black die ring,
connection hose with
coupling, no dies,
no pump
82C-R01-PFD........... Karrykrimp silver die ring
Karrykrimp II
Karrykrimp II is portable, compact and
ruggedly built. The Karrykrimp II gives you ev-
erything you need to crimp hoses from 1/4"
to 1-1/4" in one convenient package. Model
85C-061 includes crimping
machine, collapsible stand, die rings, and
connection hose with quick coupling.
Select the power unit that meets your needs.
Part No.
85C-061-PFD ........... Karrykrimp 2, two-piece
stand, silver die ring, black
die ring, connection hose
with coupling,
no dies, no pump
85C-R01-PFD........... Karrykrimp 2 silver die ring
Parkrimp I
Parkrimp I offers hose
assembly capability
through 1-1/4", SAE 100R1,
100R2, 100R7, 100R8, 100R9
and 100R14 to provide
you with the ability
to crimp straight — as
well as bent tube hose ends;
a full power return cycle
allows quick, easy size and
hose type changes, while
the die pusher automatically
moves out of the way for
easy die insertion: Bench
mounted at a 20° angle lets you load and unload hydraulic as-
semblies as easily as possible. Parkrimp I gives you the ease and
flexibility to manufacture hydraulic hose assemblies you require
– and in less than ten seconds.
Part No.
80C-081-PFD ........... Parkrimp 1 crimper, silver die ring, black
die ring, no dies
80C-R01-PFD........... Parkrimp 1 silver die ring
Parkrimp II
Parkrimp II provides you with total
capability to manufacture hydraulic hose
assemblies up through 2". Parkrimp II’s
advanced design — with capacity to
handle 100R1 through 100R14 hose types,
coupled with straight or bent tube ends
— is the industry’s leading edge in the
manufacture of hydraulic hose assem-
blies. Unparalleled in its design, Parkrimp
II needs no special adjustments or gauge
settings. Simply insert the
unitized or split die train for the
appropriate size – and with push button
ease you have factory-quality assemblies
in just seconds.
Part No. 83C-081-PFD ...........Parkrimp 2 head assembly,
Parkrimp 2 stand assembly with
230/460 volt 3 phase power unit
wired for 230 volt, adapter bowl,
spacer ring, no dies
Superkrimp
Superkrimp can handle all Parflex thermoplastic and TFE hose assemblies up through 2”. Its design
— with capacity to handle 100R7, 100R8, and 100R14 hose types, coupled with straight or bent tube ends
— is the industry’s leading edge in the manufacture of hose assemblies. Unparalleled in its design, Su-
perkrimp needs no special adjustments or gauge settings. Simply insert the unitized or split die train for
the appropriate size, and with push-button ease you have factory quality assemblies in just seconds.
• Bench top design
• Quick, easy operation
• Stainless steel crimping
Part No.
88C-082-PFD ........Superkrimp, 115/120 volt single phase power unit wired for 230 volts, adapter bowl,
spacer ring, spacer plate, no dies. Order appropriate dies from the crimp die se-
lection chart in the Technical & Design Information section.
