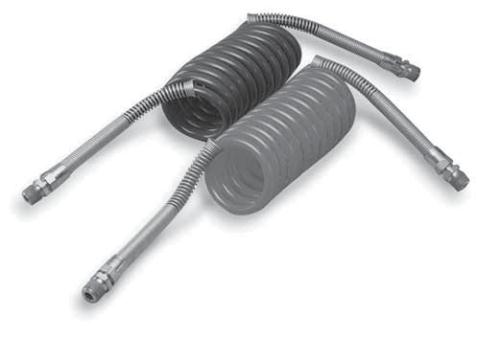

SliderCoil™
The Parker SliderCoil is used between an adjustable rear trailer
axle and the final point on a trailer chassis. No need to install
springs or hangers. SliderCoil will retract to its original shape
even after long periods of extended use. Standard working length
is 6 to 8 feet. It meets all D.O.T. requirements – Title 49, – Trans-
portation Chapter III, – Federal Highway Administration, – D.O.T.
(Docket No. MC-68; Notice No. 75-16), Part 393, Parts and Acces-
sories Necessary for Safe Operation.
How to Order:
SliderCoil kits are supplied complete – Parker pre-assembled,
with everything needed, including spring guards and male pipe
end NTA fittings, ready to install . Special pipe thread sealant is
factory applied. No cutting or assembly necessary. Just attach the
gladhand to either end. They are available in kits or as separate
lines. A kit consists of both a red and blue tube assembly.
SliderCoil™
Kit
Coil
Number
Individual
Coil
Part
Numbers
Tube
O. D.
Valve
Tail
Brass Male Ends
(NPT) Working
Length
Range
ft.
Number
of Coils Application Color
Valve
90° End
Gladhand
180° End
751657 751658-BLU, RED -8 8 1/4 1/4 14-1/2 6' - 8' Sliding Blue, Red
751659 751660-BLU, RED -8 8 3/8 3/8 14-1/2 6' - 8' Trailer Axles Blue, Red
