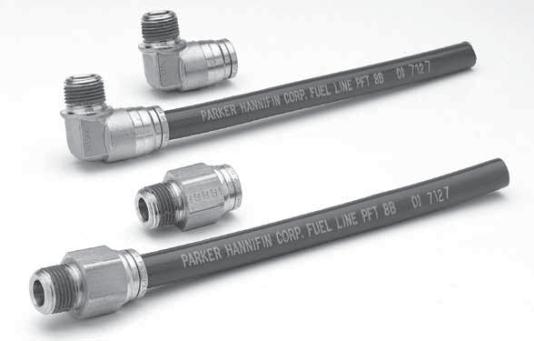

Parflex Diesel Fuel Tubing
Parflex FL Tubing
– Nylon tubing designed for use in tractor, trailer and other mobile fuel systems.
• Heat and light stabilized.
• 100% quality controlled – 100% pressure tested.
• Saves weight and labor in comparison with hose and
hardline tubing.
• For use in D.O.T. diesel fuel applications.
• For use with Parker Prestomatic diesel fuel fittings.
•
Do not exceed temperature and pressure ranges
.
Diesel Fuel Tubing
Heat and light stabilized seamless extruded nylon core
reinforced with fibrous reinforcement and bonded with a
protective blue nylon cover sheath.
Temperature Range:
-40°F to +200°F (-40°C to +93°C).
Maximum Working Pressure:
150 PSI.
Contact Parflex Division for application review
.
Parflex Diesel Fuel Tubing
XXX represents color code.
Standard color: blue (BLU).
Consult Division for additional colors.
Part
Number
Reel
Length
ft.
Nom.
Tube
O. D.
in.
Nom.
Tube
I. D.
in.
Min.
Bend
Radius
in.
Weight
lbs.
Per
100 ft.
PFT-4A-XXX-1000-FL
1000
1/4
.170
1.00
1.21
PFT-6B-XXX-500-FL
500
3/8
.251
1-1/2
2.71
PFT-8B-XXX-500-FL
500
1/2
.376
2
3.89
PFT-10B-XXX-250-FL
250
5/8
.441
2-1/2
7.04
PFT-12B-XXX-250-FL
250
3/4
.566
3
8.57
Part
Number
Nom.
Tube
O. D.
in.
Nom.
Tube
I. D.
in.
Nom.
Wall
Thickness
Max.
Working
Pressure
at 73°F
PSI
Min.
Burst
Pressure
at 73°F
PSI
Min.
Burst
Pressure
at 266°F
PSI
Min.
Bend
Radius
in.
Weight
lbs.
Per
100 ft.
Reel
Length
ft.
HTFL-6B-BRN-500
3/8
.251
.062
175
1,400
700
1-1/2
2.75
500
HTFL-8B-BRN-500
1/2
.376
.062
155
950
625
2
3.87
500
HTFL-10B-BRN-250
5/8
.441
.092
140
900
560
2-7/8
7.12
250
HTFL-12B-BRN-250
3/4
.566
.092
150
1,300
350
3
8.60
250
HTFL High Temperature Diesel Fuel Line Tubing
Tube:
High temperature and chemical resistant
special polyamide
Reinforcement:
High strength yarn fiber
Cover:
High temperature and UV resistant special
polyamide
Cover Color:
Brown (other colors, contact Parflex)
Temperature Range:
-50°F to +266°F (-46°C to +130°C)
Vacuum Rating:
28 inches Hg
Fittings:
*Parker NTA series brass compression
fittings
* Available from the Parker Brass Products Division
