Fast-Stor
®
Air Hose
Fast-Stor
®

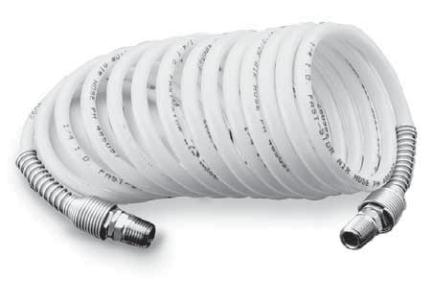

Self Retracting Air Hose, from Parflex, is manufactured
from an extremely tough, abrasion resistant nylon. Fast-Stor
®
hose
has excellent memory characteristics over a wide temperature range
for long service life in the most rugged applications. The SAFETY
YELLOW color of Fast-Stor
®
is highly desirable due to U.S. Govern-
ment OSHA directives.
Service temperature range from -40°F to +200°F (-40°C to +93°C).
Assembly
Part
Number
Fast-
Stor
Hose
I. D.
Total
Length
of Hose
ft.
Usable
Length
ft.
Fitting
End
#1
Fitting
End #2
Live
Swivel
Max.
Working
Pressure
PSI*
Min.
Burst
at
73°F
A0312-MC4-ML4
3/16
12
9
1/4" MPT 1/4" MPT
170
680
A0325-MC4-ML4
3/16
25
18
1/4" MPT 1/4" MPT
170
680
A0350-MC4-ML4
3/16
50
38
1/4" MPT 1/4" MPT
170
680
A0412-MC4-ML4
1/4
12
9
1/4" MPT 1/4" MPT
170
680
A0425-MC4-ML4
1/4
25
18
1/4" MPT 1/4" MPT
170
680
A0450-MC4-ML4
1/4
50
38
1/4" MPT 1/4" MPT
170
680
A0612-MC6-ML6
3/8
12
9
3/8" MPT 3/8" MPT
170
680
A0625-MC6-ML6
3/8
25
18
3/8" MPT 3/8" MPT
170
680
A0650-MC6-ML6
3/8
50
38
3/8" MPT 3/8" MPT
170
680
A0812-MC8-ML8
1/2
12
9
1/2" MPT 1/2" MPT
170
680
A0825-MC8-ML8
1/2
25
18
1/2" MPT 1/2" MPT
170
680
A0850-MC8-ML8
1/2
50
38
1/2" MPT 1/2" MPT
170
680
Assembly
Part
Number
Hose
I. D.
Avg.
Wall
Thick
in.
Hose
Length
ft.
Master
Carton
Quality
Coil
Min.
I. D.
Coil
Max.
O. D.
Max.
Working
Pressure
PSI*
Min.
Burst
at
73°F
FS-03-100
3/16
.023
100
600
2.0
2.5
170
680
FS-04-100
1/4
.030
100
600
3.0
3.7
170
680
FS-06-100
3/8
.045
100
400
4.5
5.5
170
680
FS-08-100
1/2
.062
100
400
6.5
7.8
170
680
FS-12-100
3/4
.075
100
100
12.0
14.0
170
680
