Typical Dimensions for Sanitary Fittings
Sanitary
CRIMP FITTINGS
26

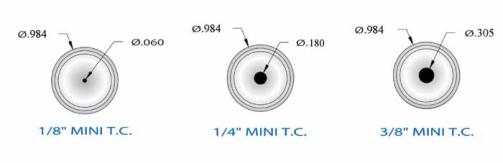

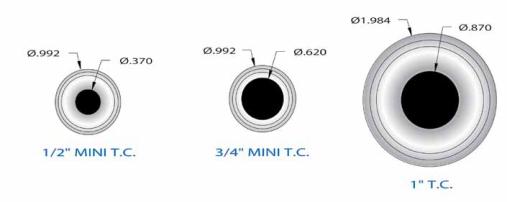

These actual size drawings are provided to eliminate sizing errors when specifying sanitary fttings. The outside
diameter is the same for 1/8”, 1/4”, 3/8”, 1/2” and the 3/4” (mini) styles. For your convenience and ordering accuracy,
all of these drawings may be used as sizing, I.D. and O.D. patterns. These fttings are ASME-BPE compliant.
PAGE Fittings
