Hydraulic systems seem to get more and
more demanding each day. Operating
temperatures are on the rise. Synthetic
hydraulic fluids are more in demand
and space is becoming more limited.
Requirements are for hose assemblies
designed to endure all of these conditions,
yet handle high working pressures while
maintaining peak flow rates. PARKER
PAGE 944B/955B High PSI hose assemblies
answer the challenge, delivering quality
performance under these demanding
circumstances.

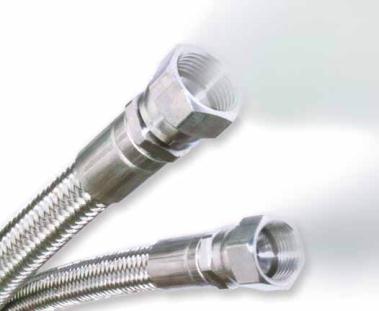

PARKER PAGE 944B/955B High PSI
assemblies have a heavy wall of PTFE that
has excellent compatibility with a variety
of media. The PTFE tube has a static
dissipating liner that provides a path of
continuity to the end fittings for applications
where flow induced electrostatic charges
could occur and potentially damage the
hose assembly. The resilient PTFE tube
is reinforced with braided SS 304 wire.
Braiding, as opposed to spiraling, allows for
better flexibility and a tighter bend radius
in the finished hose while maintaining high
continuous working pressures. The stainless
steel wire braid also minimizes volumetric
expansion in hydraulic service.
• Up to 5,500 psi for non-impulse applications
• Static dissipating liner
• Excellent compatability with a variety of media
• Chemically inert
• Up to 6 layers of reinforcement
• Better flexibility than spiral hose
• Tighter bend radius than spiral hose
Product Features:
Handles Pressures up to 5,500 psi
PAGE 944B/955B HIGH PRESSURE PTFE HOSE
All ratings based on 72°F (22°C) - All dimensions nominal - Working pressures and vacuum ratings may vary depending
upon end connections and process and temperature parameters.
