Convoluted
PTFE FLARE-SEAL™ PRODUCTS
12
All ratings based on 72°F (22°C) - All dimensions nominal - Working pressures and vacuum ratings may vary depending
upon end connections and process and temperature parameters.
PARKER PAGE Flare-Seal™ PTFE hose products are
designed and manufactured to provide the ultimate in
high purity, corrosion/chemical resistance and sanitary
applications. PARKER PAGE Flare-Seal™ PTFE hose
products are available in convoluted with a stainless steel
braid or as polypropylene braided convoluted assemblies.
They can be manufactured in natural (non-conductive) or
black (conductive-static dissipating) assemblies.
One unique beneft offered by PARKER PAGE Flare-Seal™
hoses is that the PTFE hose liner actually passes through the
inside of the ftting and it is then fared over the face of the
ftting. This special process is a signifcant improvement over
conventional ftting assembly procedures, where the ftting
normally passes through the inside of the liner, creating
fow restrictions and bacterial entrapment. PARKER PAGE
Flare-Seal™ products solve these problems with the beneft
of unrestricted fow leaving no area for bacterial entrapment
while providing 100% PTFE coverage on all wetted surfaces.

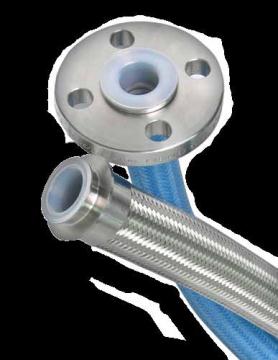

Flare-Seal™ products can be provided with fanged ends or
sanitary tri-clamp end connections.
Flare-Seal
PARKER PAGE Hose product materials are compliant with the f llowing requirements: FDA 21 CFR 177.1550, 177.2600 •
USP XXII Class VI Requirements • Pharmacopoe a 3.1.9 • ISO 1093 S ctions 5, 6, 10, 11 • USDA Standards • 3A Standards
SEAMLESS INNER CORE
UNINTERRUPTED FLOW
EASY TO CLEAN
