PTFE - Heavy Wall Open Pitch
SEAMLESS CONVOLUTED PTFE
HOSE ASSEMBLIES Without Braid
10
As Manufactured
Vacuum Wire on I.D.
Vacuum Wire on O.D.
90° Flanged End
Specifed Flare
Standard Cuff
Reduced Cuff
Expanded Cuff
LOW PRESSURE VENT AND VACUUM TUBING

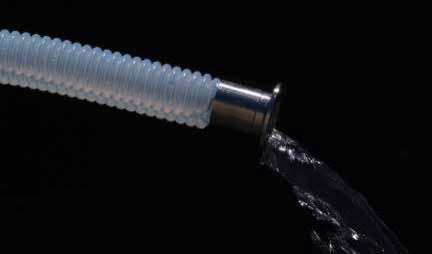

PARKERPAGEmanufactures high quality PTFE convoluted
tubing from thick walled PTFE that is open pitched and
self draining. CWV/CBV tubing is manufactured with
smooth, rounded, helical-shaped convolutions which help
to promote easy cleaning and self draining for ultimate
high purity, convoluted tubing.
PARKER PAGE Heavy Wall Open Pitch tubing is offered
in natural (non-conductive) or black (conductive-static
dissipating). CWV and CBV tube can be provided with
standard smooth cuffs, Flare Seal style, fanged or a
variety of crimp style end fttings. For vacuumapplications
at elevated temperatures and for 2.5”, 3” and 4” sizes, a
vacuum wire is recommended.
PARKER PAGE CWV and CBV is widely used in high
temperature and chemical resistant applications for
industries such as semiconductor, automotive, chemical,
petrochemical and pharmaceutical industries.
All ratings based on 72°F (22°C) - All dimensions nominal - Working pressures and vacuum ratings may vary depending
upon end connections and process and temperature parameters.
Convoluted
