Page 35 - ParkerMULTITUBE

32
Parker Hannifn Corporation
Parfex Division
Ravenna, OH
Catalog Number 4200-M-2 Chemical Processing and Refneries

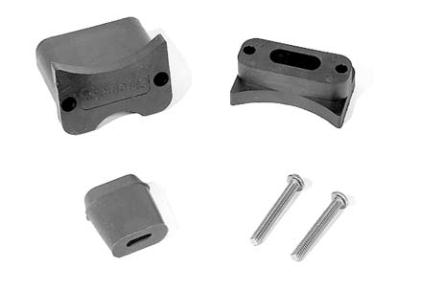

4041-8200 Electrical End
Termination Kit for SL and SH
Self-Regulating Bundles
Parker electrical end termination kit (4041-8200) is designed to provide
a method of terminating the non-powered end of the heating cable.
Also in kit but not shown:
1 Caution label
1 Roll glass tape
3 Additional heat grommets
4041-6101 Electrical End Termination
Kit for Self-Regulating Bundles
Parker electrical end termination kit (4041-6101) is designed to provide a
method of terminating the non-powered end of the heating cable.
4041-6101 Use with Single Tube Bundle
4041-6102 Use with Two Tube Bundle
4041-6103 Use with Three Tube Bundle
4041-6104 Use with Four Tube Bundle
Approvals:
FM – Factory Mutual Approved
Ordinary Locations
UL Listed
Hazardous (Classifed) Locations
Class I, Division 2, Groups B, C and D
Class II, Division 2, Groups F and G
Class III, Division 2
CSA Certifed for use in ordinary areas and:
Class I, Division 2, Groups A, B, C and D
Class II, Division 2, Groups F and G
