An easily installed combination power connection and
waterproof seals for single and double tube bundles.
Caution: The heater will come in contact with the power feed wires
in the junction box. Make sure that the temperature rating of the
power feed wire insulation is adequate for the heater used.
4041-2101 Temptrace Power
Connection Kit with Junction Box
4041-2101 Temptrace Electric Power
Connection Kit for SL and SH Series
Self-Regulating Bundles

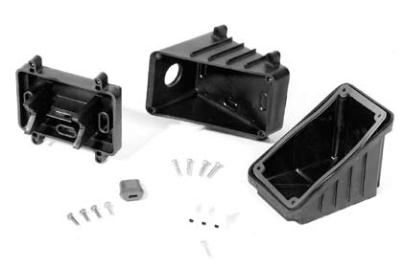

Power Connection Kit Contains:
1 Molded junction box consisting of : Base - Box - Lid - Hardware
4 Heater grommets (grommet used based upon heater type)
1 Pipe strap 1" – 3-1/2"
1 RTV-103BLK
1 Three position terminal block
1 Mounting screw for terminal block
1 Caution label
Approvals:
FM – Factory Mutual Approved
Ordinary Locations
UL Listed
Hazardous (Classifed) Locations
Class I, Division 2, Groups B, C and D
Class II, Division 2, Groups F and G
Class III, Division 2
CSA Certifed for use in ordinary areas
Ground Fault Equipment Protection Devices (GFEPDs):
The IEEE standard (515-1989) for heating cables requires the
use of GFEPDs with a nominal 30 milliampere trip level for
“piping systems in classifed ares, those areas requiring a high
degree of maintenance, or which may be exposed to physical
abuse or corrosive atmospheres.”
ATEX Approved Kits Available
