Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
Chemical
Paint Fluid Hose

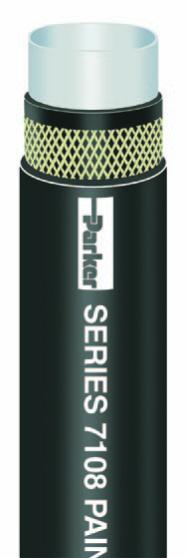

Series 7108
Series 7108 is a medium pressure transfer hose designed to handle high aromatic content
products such as ketone solvents, lacquers, paint thinners, oil-based and water-based
paints and many common chemicals. Te hose construction incorporates a nylon tube that
will not leach into and contaminate the product being conveyed, and the robust aramid
reinforcement provides kink resistance, strength and superior coupling retention. Te cover
is resistant to mild chemicals, oil and ozone.
NOTES:
• Refer to the Safety and Technical section of this catalog for safety, handling and
use information. Refer to the Chemical Guide section of this catalog to determine
compatibility with specifc chemicals. Contact Parker for additional chemical
compatibility information.
• Do not use in high pressure paint spray applications.
Tube:
Translucent nylon
Reinforcement:
Multiple aramid plies
Cover:
Black chloroprene; smooth fnish
Temp. Range:
0°F to +200°F (-18°C to +93°C)
Brand Method:
White ink
Brand Example:
PARKER SERIES 7108 PAINT FLUID HOSE (ID) XXX PSI MAX WP MADE
IN USA (DATE CODE)
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• Lacquers, light chemicals, paints, solvents, thinners
•
Connector, mixing, transfer service
Vacuum:
Not rated
Compare to:
Boston Nyall; Gates 77B; Veyance NR Spray
Packaging:
Reels
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7108-251
1/4 6.4
2 0.488 12.4 0.09 0.04 3.0 76.2 500 34.5 HY, 43 500 Y
7108-381
3/8 9.5
2 0.680 17.3 0.16 0.07 4.0 101.6 500 34.5 HY, 43 500 Y
7108-501
1/2 12.7 2 0.875 22.2 0.25 0.11 5.0 127.0 750 51.7 HY, 43 500 Y
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNINGS!
It is the responsibility of the user to determine if the hose is suitable for the application. Most chemical resistance guides are based on
temperatures of 70°F (21°C). Elevated temperatures can change the chemical resistance ratings. Many chemicals will become more
aggressive as temperatures increase, reducing the ability of hose compounds to withstand them. Contact Parker for chemical compatibility
data at elevated temperatures. If no data exists, users are required to perform compatibility testing at the desired temperature.
Do not use in high pressure paint spray applications requring a statically conductive hose.
!
