Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
Chemical
07-702-CHEM

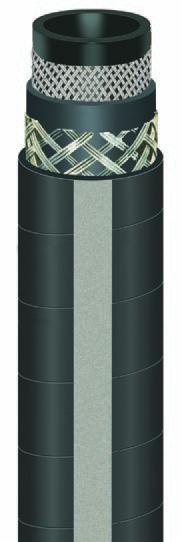

Anhydrous Ammonia Hose
Stainless Steel Reinforced
Series 7261
Series 7261 is a premium anhydrous ammonia transfer hose. Te hose construction
incorporates corrosion resistant high tensile stainless steel and nylon braids for superior
durability and service life. Te perforated cover is resistant to abrasion, mild chemicals and
ozone, and the distinctive silver stripe provides color-coded identifcation.
NOTES:
• Refer to the Safety and Technical section of this catalog for safety, handling and
use information. Refer to the Chemical Guide section of this catalog to determine
compatibility with specifc chemicals.
• Contact Parker for additional chemical compatibility information, and for
suitability for non-agricultural/industrial refrigeration applications.
• Do not use with LPG or natural gas.
• Series 7261 is a non-stock, seasonal product available only through Parker
Certifed Anhydrous Ammonia Hose Assembly Fabricators. Contact Parker for a
referral.
Tube:
Black EPDM
Reinforcement:
One or multiple stainless steel braids and one textile braid
Cover:
Black EPDM; perforated wrapped fnish
Temp. Range:
-40°F to +180°F (-40°C to +82°C)
Brand Method:
Side 1:
Embossed
Side 2:
Solid silver stripe
Brand Example:
PARKER SERIES 7261 SS ANHYDROUS AMMONIA - (YEAR)
REMOVE NO LATER THAN (YEAR +7) - 350 PSI MAX WP ARPM
(BATCH CODE) - CAUTION ANHYDROUS AMMONIA USE ONLY -
(YEAR) REMOVE NO LATER THAN (YEAR +7)
Design Factor:
5:1
Industry Standards:
ARPM IP-14
Applications:
• Anhydrous ammonia
• In-plant and tank transfer, transport and delivery; fertilizer dispensing
• Agriculture
Vacuum:
Not recommended
Compare to:
Goodall N2595
Packaging:
Coils (bulk hose available only to Parker Certifed Anhydrous Ammonia
Hose Assembly Fabricators)
(Continued on the following page)
WARNINGS!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
Refer to the Safety and Technical Data Information section of this catalog for the proper use of this hose.
For Anhydrous Ammonia use ONLY. Do not use in Liquid Petroleum Gas (LPG)/Propane or Natural Gas applications. Use only with
couplings qualifed by Parker. Do not use with couplings containing hidden o-rings such as male swivel couplings. For non-agricultural or
refrigeration applications, contact Parker.
Contact with Anhydrous Ammonia (NH3) will burn skin and is especially damaging to the eyes and lungs. This is true for its liquid and
gaseous (vapor) state. Many accidents involving NH3 have occurred by using the wrong hose. NH3 hose must be specially compounded
and constructed to handle the media. NEVER use a hose that is not designed for NH3 because it may fail very quickly and cause bodily
injury or death. It is especially important to ensure that only Anhydrous Ammonia hose is recommended and used for this service. Refer to
ARPM Publications IP-14 “Anhydrous Ammonia Hose, Specifcations” and IP-11-2 “Anhydrous Ammonia Hose, Manual for Maintenance,
Testing and Inspection.”
!
