Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
Chemical
LIGHT-N-BRIGHT™
Modifed XLPE Chemical Hose
External PVC Helix
Series SP483

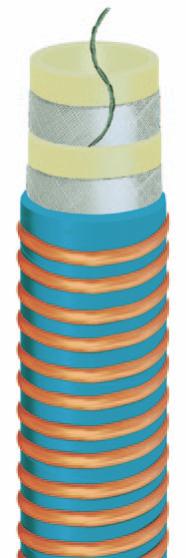

Series SP483 is an extremely fexible suction and discharge hose designed to handle many
commonly used acids, chemicals and solvents. Te modifed cross-linked polyethylene
(MXLPE) tube will not leach into and contaminate the product being conveyed. Te
lightweight hose construction incorporates a static wire as a path to conduct an electrical
charge to ground, and the cover features an external PVC helix for full suction capability
and superior abrasion, crush and kink resistance. Series SP100 banding coils are
recommended for installation of reattachable fttings. Series XSP100 abrasion coils are
available for maximum abrasion resistance along the entire length of the hose.
NOTE:
Refer to the Safety and Technical section of this catalog for safety, handling and
use information. Refer to the Chemical Guide section of this catalog to determine
compatibility with specifc chemicals. Contact Parker for additional chemical
compatibility information.
Tube:
Tan modifed cross-linked polyethylene (MXLPE)
Reinforcement:
Multiple textile plies with static wire
Cover:
Blue synthetic rubber with external orange PVC helix
Temp. Range:
-40° to +180°F (-40°C to +82°C)
Brand Method:
Not branded
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• Acid, chemicals, solvents
• In-plant tank transfer
• Delivery, transport
Vacuum:
Full
Packaging:
Coils
Couplings:
Requires SP100 Banding Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
SP483-2000
2 50.8 2 3.00 76.2 1.23 0.56 16.0 406.4 150 10.3 *
100 N
SP483-3000
3 76.2 2 4.00 101.6 1.76 0.80 24.0 609.6 150 10.3 *
100 N
SP483-4000
4 101.6 2 5.00 127.0 2.30 1.04 28.0 711.2 150 10.3 *
100 N
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNINGS!
It is the responsibility of the user to determine if the hose is suitable for the application. Most chemical resistance guides are based on
temperatures of 70°F (21°C). Elevated temperatures can change the chemical resistance ratings. Many chemicals will become more
aggressive as temperatures increase, reducing the ability of hose compounds to withstand them. Contact Parker for chemical compatibility
data at elevated temperatures. If no data exists, users are required to perform compatibility testing at the desired temperature.
At operating temperatures of 125°F and above, only permanently attached couplings should be installed. At any operating temperature,
couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
