Chemical
TITANFLEX
®
Modifed XLPE Chemical Hose

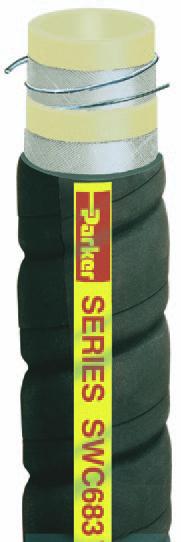

Series SWC683 (Black) and

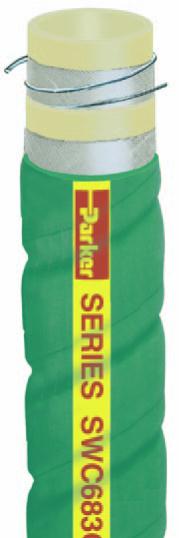

Series SWC683G (Green)
Series SWC683/SWC683G is a fexible, lightweight, high pressure, high
temperature suction and discharge hose designed to handle many
commonly used acids, chemicals and solvents. Te modifed cross-linked
polyethylene (MXLPE) tube will not leach into and contaminate the product
being conveyed, and features a temperature rating to 250°F (121°C). Series
SWC683/SWC683G can be cleaned with a 10% alkali bath, hot water or low
pressure steam. Te corrugated hose construction incorporates a dual wire
helix that provides full suction capability, fexibility, kink resistance and a
path to conduct a static electrical charge to ground, and is suitable for use
with internally expanded couplings. Te cover is resistant to abrasion, mild
chemicals and ozone.
NOTE:
Refer to the Safety and Technical section of this catalog for safety,
handling and use information. Refer to the Chemical Guide section
of this catalog to determine compatibility with specifc chemicals.
Contact Parker for additional chemical compatibility information.
Tube:
Tan modifed cross-linked polyethylene (MXLPE)
Reinforcement:
Multiple textile plies with dual wire helix
Cover:
SWC683:
Black EPDM, corrugated wrapped fnish
SWC683G:
Green EPDM, corrugated wrapped fnish
Temp. Range:
-40°F to +250°F (-40°C to +121°C)
Brand Method:
Red text on yellow stripe
Brand Example:
PARKER SERIES SWC683 (SWC683G) TITANFLEX
®
MOD XLPE CHEMICAL SUCTION XXX PSI WP MADE IN
USA
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• Acid, chemicals, solvents
• In-plant tank transfer
• Delivery, transport
Vacuum:
Full
Compare
To:
Gates Mustang
Packaging:
Coils
(Continued on the following page)
WARNINGS!
It is the responsibility of the user to determine if the hose is suitable for the application. Most chemical resistance guides are based on
temperatures of 70°F (21°C). Elevated temperatures can change the chemical resistance ratings. Many chemicals will become more
aggressive as temperatures increase, reducing the ability of hose compounds to withstand them. Contact Parker for chemical compatibility
data at elevated temperatures. If no data exists, users are required to perform compatibility testing at the desired temperature.
At operating temperatures of 125°F and above, only permanently attached couplings should be installed. At any operating temperature,
couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
