Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
Chemical
POLY-CHEM
®

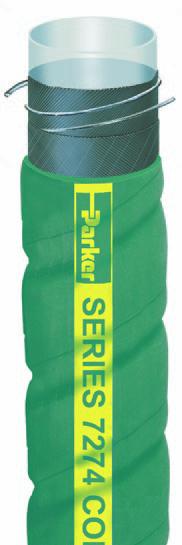

XLPE Corrugated Chemical Hose
Series 7274
Series 7274 is a fexible suction and discharge hose designed to handle many commonly
used acids, chemicals and solvents. Te cross-linked polyethylene (XLPE) tube will not
leach into and contaminate the product being conveyed. Te corrugated hose construction
incorporates a wire helix that provides full suction capability, fexibility, kink resistance and
a path to conduct a static electrical charge to ground. Te cover is resistant to abrasion, mild
chemicals and ozone. Series 7274 is available in 200-foot continuous lengths.
NOTE:
Refer to the Safety and Technical section of this catalog for safety, handling and
use information. Refer to the Chemical Guide section of this catalog to determine
compatibility with specifc chemicals. Contact Parker for additional chemical
compatibility information.
Tube:
Translucent cross-linked polyethylene (XLPE)
Reinforcement:
Multiple textile plies with dual wire helix
Cover:
Green EPDM; corrugated wrapped fnish
Temp. Range:
-20°F to +160°F (-29°C to +71°C)
Brand Method:
Green text on yellow stripe
Brand Example:
PARKER SERIES 7274 CORRUGATED POLY-CHEM
®
200 PSI MAX WP
MADE IN USA (LOT#)
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• Acids, chemicals, solvents
• In-plant tank transfer
• Delivery, transport
Vacuum:
Full
Compare to:
Boston Panther Chemical Transfer; Veyance Blue Flexwing
Packaging:
Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7274-1002
1 25.4 2 1.475 37.5 0.55 0.25 3.0 76.2 200 13.8
43
100 Y
7274-1252
1-1/4 31.8 2 1.710 43.4 0.63 0.29 4.0 101.6 200 13.8
43
100 Y
7274-1502
1-1/2 38.0 2 2.000 50.8 0.77 0.35 5.0 127.0 200 13.8
43
100 Y
7274-2002
2 50.8 2 2.519 65.2 1.14 0.52 6.0 152.4 200 13.8 43, RE, RST, TM, WC 100 Y
7274-2502
2-1/2 63.5 4 3.086 78.4 1.58 0.72 7.0 177.8 200 13.8
*
100 N
7274-3002
3 76.2 4 3.580 90.9 1.91 0.87 7.0 177.8 200 13.8
RE, RST, TM 100 Y
7274-4002
4 101.6 4 4.710 119.6 2.85 1.29 8.0 203.2 200 13.8
*
100 N
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNINGS!
It is the responsibility of the user to determine if the hose is suitable for the application. Most chemical resistance guides are based on
temperatures of 70°F (21°C). Elevated temperatures can change the chemical resistance ratings. Many chemicals will become more
aggressive as temperatures increase, reducing the ability of hose compounds to withstand them. Contact Parker for chemical compatibility
data at elevated temperatures. If no data exists, users are required to perform compatibility testing at the desired temperature.
At operating temperatures of 125°F and above, only permanently attached couplings should be installed. At any operating temperature,
couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
Do not use with internally expanded couplings. Refer to chemical hoses that incorporate a MXLPE tube.
!
