Couplings & Equipment

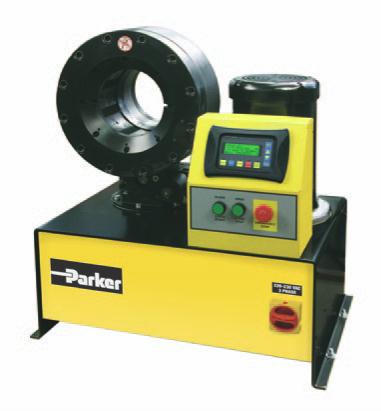

COS-K4
Adjustable Crimper
Electronic Crimp Setting/Adjustment
Te COS-K4 is a versatile adjustable crimper that provides accurate, reliable,
repeatable, quick and easy crimping for hose up to 4" ID.
• 265 tons of crimping force
• 7.5 horsepower hydraulic pump, 8 gallon reservoir (5 horsepower pump for
single phase model)
• Available in 3 models:
208-230 VAC 1-phase
208-230 VAC 3-phase
440-480 VAC 3-phase
• Master die ID: 145mm
• Master die opening without dies: 205mm
• Master die opening with dies: Die diameter + 60mm
• Maximum crimping diameter: 136mm
• Electronic crimp setting/adjustment
• Manual and automatic operation
• Heavy-duty base
• Capability:
to 4" industrial hose
to 2" 4-spiral wire hose
to 1-1/2" 6-spiral wire hose
Part
Number
Description Die
Closure
(mm)
Die
Length
(mm)
Dimensions Approx
Wt
(lbs)
Stock
Status
**
Availability
COS-K4SP220 208-230 VAC, 1-phase 18.3" W x 27.25" L x 31.25" H 573 N
COS-K4TP220 208-230 VAC, 3-phase 18.3" W x 27.25" L x 31.25" H 573 N
COS-K4SP440 440-480 VAC, 3-phase 18.3" W x 27.25" L x 31.25" H 573 N
Foot switch N Included
Master die, 145mm N Included
Adapter die, 145mm (for 99mm dies) N Included
101247-99 Crimper stand, storage rack,
die-change tool for 99 mm dies
90 N Optional
EBS-60 Back set-stop, electrical 5 N Optional
MBS-60 Back set-stop, mechanical 6 N Optional
(Continued on the following page)

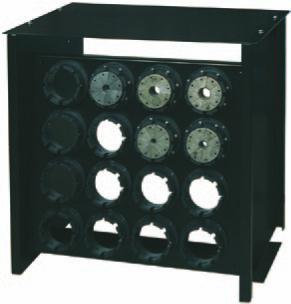

K4 Crimper Stand
Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
