Water

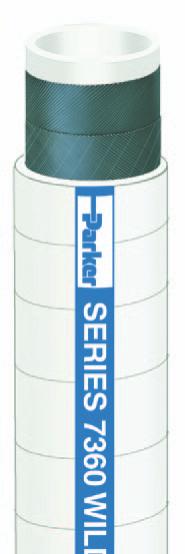

WILDCATTER®
White Washdown Hose
Series 7360
Series 7360 is a low pressure washdown hose for hot water in cleaning applications where
higher pressures are not required. Te hose construction incorporates multiple plies of
textile reinforcement that provide fexibility, and the white, non-marking cover is resistant
to abrasion, heat and ozone.
NOTE: Do not expose to fatty or oily foods.
Tube: White SBR
Reinforcement: Multiple textile plies
Cover: White SBR; wrapped fnish
Temp. Range: -20°F to +212°F (-29°C to +100°C)
Brand Method: White text on blue stripe
Brand Example: PARKER SERIES 7360 WILDCATTER® WASHDOWN HOSE 150 PSI WP
MADE IN USA (LOT#)
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Hot water
• Breweries, dairies, food processing plants, general industrial, oil rigs,
paper mills
Vacuum: Not recommended
Compare to: Veyance Plicord Washdown
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7360-50150 1/2 12.7 2 1.008 25.6 0.35 0.16 4.0 101.6 150 10.3 * 50 N
7360-75150 3/4 19.1 2 1.250 31.8 0.45 0.20 6.0 152.4 150 10.3 * 50 Y
7360-75150100 3/4 19.1 2 1.250 31.8 0.45 0.20 6.0 152.4 150 10.3 * 100 Y
7360-100150 1 25.4 2 1.598 40.6 0.71 0.32 8.0 203.2 150 10.3 * 50 Y
7360-150150 1-1/2 38.1 4 2.125 54.0 1.01 0.46 18.0 457.2 150 10.3 * 50 Y
7360-200150 2 50.8 4 2.748 69.8 1.60 0.73 24.0 609.6 150 10.3 * 50 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
