Water
ECW™
Economy White Washdown Hose

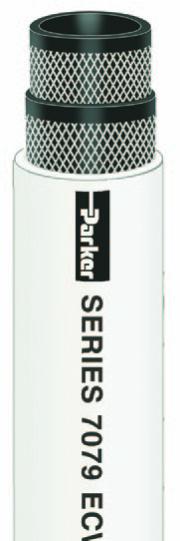

Series 7079
Series 7079 is a fexible, lightweight, medium pressure washdown hose for hot water
and mild chemicals in cleaning and washdown applications. Te hose construction
incorporates multiple plies of textile reinforcement that provide fexibility, and the white,
non-marking cover is resistant to abrasion, heat and ozone.
NOTE: Do not expose to fatty or oily foods.
Tube: Black EPDM
Reinforcement: Multiple textile plies
Cover: White EPDM; smooth fnish
Temp. Range: -40°F to +212°F (-40°C to +100°C)
Brand Method: Black ink
Brand Example: PARKER SERIES 7079 ECW™ ECONOMY WASHDOWN (ID)
300 PSI MAX WP MADE IN USA (DATE CODE)
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Hot water, mild chemicals
• Breweries, dairies, food processing plants, general industrial
Vacuum: Not recommended
Compare to: Veyance Sani-Wash 300
Packaging: Reels, coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7079-75304 3/4 19.1 4 1.156 29.4 0.37 0.17 5.0 127.0 300 20.7 HY 400 Y
7079-7530450 3/4 19.1 4 1.156 29.4 0.50 0.23 5.0 127.0 300 20.7 HY 50 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
