Water
BLUE RIBBON®

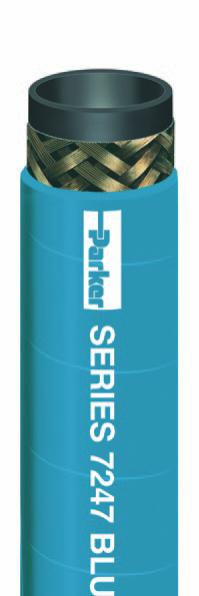

Pressure Washer Hose
Series 7247
Series 7247 is a high temperature, medium duty pressure washer hose for hot water and
mild chemicals in food processing plants. Te hose construction incorporates a high tensile
wire braid reinforcement that provides durability, kink resistance and superior coupling
retention. Te thick blue cover is resistant to abrasion and fatty, oily foods.
NOTE: Do not use for carpet cleaning or steam service.
Tube: Black chloroprene
Reinforcement: One wire braid
Cover: Blue chloroprene, perforated wrapped fnish
Temp. Range: -40°F to +250°F (-40°C to +121°C)
Brand Method: White ink
Brand Example: PARKER SERIES 7247 BLUE RIBBON® PRESSURE WASHER HOSE
(ID) 1500 MAX WP (DATE CODE) NOT FOR STEAM SERVICE
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Hot water, mild chemicals
• Breweries, dairies, food/poultry processing plants, general industrial
Vacuum: Not recommended
Compare to: Boston Pressure Washer 3000; Gates Power Clean; Veyance Neptune
Packaging: Reels, cartons
Part
Number
ID
(in)
ID
(mm)
Reinf
Braids
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7247-251BL 1/4 6.4 1 0.575 14.6 0.18 0.08 1.7 43.2 1500 103.4 HY 500 N
7247-381BL 3/8 9.5 1 0.700 17.8 0.24 0.11 2.2 55.9 1500 103.4 HY 500 N
7247-381BL050 3/8 9.5 1 0.700 17.8 0.24 0.11 2.2 55.9 1500 103.4 HY 6 x 50 N
7247-501BL 1/2 12.7 1 0.825 21.0 0.30 0.14 3.2 81.3 1500 103.4 HY 500 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
