Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
Steam
Hydrocarbon Drain Hose
Oil Resistant
Non-Skive E-Z Crimp

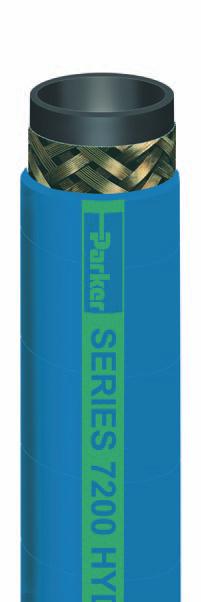

Series 7200
Series 7200 is a hydrocarbon drain hose designed to evacuate hot, liquefed residue from
steam cleaning operations. Te high temperature, oil-resistant tube and cover withstand
attack by steam vapors and petroleum-based runof. Te wire braid reinforcement provides
crush-resistant durability, kink resistance and a path to conduct a static electrical charge
to ground. Te vivid blue chloroprene cover is resistant to oil and weathering, and provides
color-coded identifcation. Series 7200 is qualifed with Parker non-skive crimp couplings
for easy and quick assembly fabrication as well as maintenance-free service.
NOTE:
Do not use for steam service.
Tube:
Black nitrile
Reinforcement:
One wire braid
Cover:
Blue chloroprene; wrapped fnish
Temp. Range:
-20°F to +300°F (-29°C to +149°C)/+350°F (+177°C) intermittent
Brand Method:
Blue text on green stripe
Brand Example:
PARKER SERIES 7200 HYDROCARBON DRAIN HOSE 250 PSI WP
MADE IN USA
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• NOT FOR STEAM SERVICE
• Drainage of hot residue from steam cleaning operations
• Manufacturing and processing plants, refneries
Vacuum:
Not recommended
Compare to:
Boston Hydrocarbon Drain Hose
Packaging:
Cartons
Part
Number
ID
(in)
ID
(mm)
Reinf
Braids
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7200-751050
3/4 19.1 1 1.187 30.1 0.52 0.24 9.5 241.3 250 17.2 43 50
Y
7200-1001050
1 25.4 1 1.500 38.1 0.76 0.34 12.0 304.8 250 17.2 43 50
Y
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNINGS!
Use only hoses designated for steam service for steam applications.
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
