Specialty
WAVEMASTER™
Marine Barrier Fuel Line / Vent Hose
ABYC, CARB, CE, EPA, ISO, NMMA, SAE, USCG
Series 7165

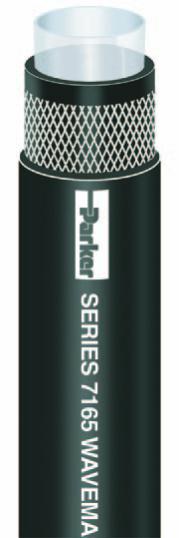

Series 7165 is a premium, low permeation fuel tank feed and vent hose for refned fuels
such as biodiesel (to B100 in dedicated and non-dedicated service), alcohol blended fuels,
diesel, ethanol and gasoline in marine applications. Te hose incorporates a thermoplastic
barrier to resist fuel permeation and the cover is resistant to abrasion, oil and weathering.
Series 7165 is fexible for easy routing in engine compartments and as a feed line to fuel
tanks where liquid fuel is continuously in the hose under normal conditions.
NOTE: Refer to the table on pages 213-214 for fuel compatibility and service conditions.
Tube: Translucent Nylon
Reinforcement: Multiple textile plies
Cover: Black nitrile/PVC; smooth fnish
Temp. Range: -20°F to +212°F (-29°C to +100°C)
Brand Method: Side One: White ink
Side Two: Solid red stripe
Brand Example: PARKER SERIES 7165 WAVEMASTER MARINE FUEL HOSE – EPA
COMPLIANT – (x)9PKHPLINE165 – SAE J1527 USCG TYPE A1-15 ISO
7840 A1 CE NMMA TYPE ACCEPTED (ID) USA PH USE WITH ABYC
COMPLIANT SYSTEMS AND FITTINGS ONLY (DATE CODE)
NOTE: (x) changes every year
Design Factor: 4:1
Industry Standards: ABYC, CARB, CE, EPA, ISO 7840 A1, NMMA, SAE J1527 A1-15,
USCG A1
Applications: • Biodiesel (to B100 in dedicated and non-dedicated service), diesel,
ethanol, gasoline, oil
• Marine fuel/vent systems
Vacuum: Not recommended
Compare to: Veyance Marine Fuel Line Flexshield
Packaging: Reels
Couplings: ABYC compliant
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7165-25250 1/4 6.3 2 0.536 13.6 0.11 0.05 2.5 63.5 100 7.0 * 250 Y
7165-31250 5/16 7.9 2 0.611 15.5 0.13 0.06 2.5 63.5 100 7.0 * 250 Y
7165-38250 3/8 9.5 2 0.681 17.3 0.16 0.07 2.5 63.5 100 7.0 * 250 Y
7165-50250 1/2 12.7 2 0.821 20.9 0.20 0.09 4.5 114.3 100 7.0 * 250 Y
7165-63250 5/8 16.0 2 1.000 25.4 0.30 0.14 4.5 114.3 75 5.2 * 250 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
