Specialty
Corrugated Heavy Duty Fire Engine
Suction Hose
NFPA 1901, 1962
Series LW720

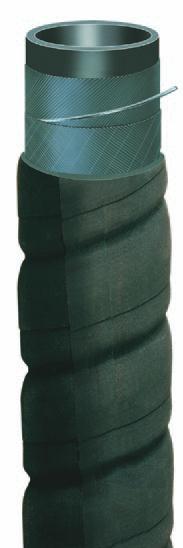

Series LW720 is a custommade, premium quality heavy duty fre engine suction hose
for remote water removal and hydrant connections on fre trucks. Te corrugated hose
construction incorporates a wire helix for full suction capability and kink resistance, and
the corrugated SBR cover that is extremely fexible and resistant to abrasion and ozone. Fire
engine suction hose is primarily used in 10-foot overall lengths; Series LW720 is available in
specifed lengths to a maximum of 100 feet.
NOTE: For smooth cover hose, refer to Series LW701. Other customized versions of this
product are available. Contact Parker.
Tube: Black SBR
Reinforcement: Multiple textile plies with wire helix
Cover: Black SBR; corrugated wrapped fnish
Temp. Range: -40°F to +180°F (-40°C to +82°C)
Brand Method: Not branded
Design Factor: 4:1
Industry Standards: NFPA 1901, 1962
Applications: • Water supply connection; remote water removal
• Fire suppression apparatus
Vacuum: Full
Packaging: Coils, lengths
Couplings: Soft cuffs per customer specifcations. Contact Parker.
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Max
Lg
(ft)
LW720-2500 2-1/2 63.5 2 3.000 76.2 1.37 0.62 15.0 381.0 150 10.3 100
LW720-3000 3 76.2 2 3.500 88.9 1.68 0.76 18.0 457.2 150 10.3 100
LW720-4000 4 101.6 2 4.500 114.3 2.23 1.01 24.0 609.6 150 10.3 100
LW720-4500 4-1/2 114.3 3 5.125 130.2 3.03 1.37 27.0 685.8 150 10.3 100
LW720-5000 5 127.0 3 5.688 144.8 4.02 1.82 30.0 762.0 150 10.3 100
LW720-6000 6 152.4 3 6.688 169.9 4.77 2.16 36.0 914.4 150 10.3 100
