Specialty
Fire Engine Suction and Discharge Hose

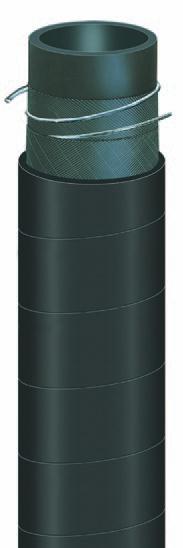

Series SW456
Series SW456 is a heavy duty, high pressure fre engine suction and discharge hose for
remote water transfer and hydrant connections on fre trucks. Te hose construction
incorporates a dual wire helix for full suction capability and kink resistance, and the SBR
cover is resistant to abrasion and ozone.
Tube: Black SBR
Reinforcement: Multiple textile plies with dual wire helix
Cover: Black SBR; wrapped fnish
Temp. Range: -40°F to +180°F (-40°C to +82°C)
Brand Method: Not branded
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Water supply connection; remote water removal
• Fire suppression apparatus
Vacuum: Full
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
SW456-1000 1 25.4 2 1.500 38.1 0.54 0.24 4.0 101.6 300 20.7 * 100 N
SW456-1500 1-1/2 38.1 2 2.000 50.8 0.77 0.35 6.0 152.4 300 20.7 * 100 N
SW456-2000 2 50.8 2 2.500 63.5 0.98 0.44 8.0 203.2 300 20.7 * 100 N
SW456-2500 2-1/2 63.5 2 3.100 78.7 1.55 0.70 10.0 254.0 300 20.7 * 100 N
SW456-3000 3 76.2 2 3.580 90.9 1.91 0.87 12.0 304.8 300 20.7 * 100 N
SW456-4000 4 101.6 2 4.620 117.3 2.83 1.28 18.0 457.2 300 20.7 * 100 N
SW456-6000 6 152.4 2 6.740 171.2 5.45 2.47 30.8 762.0 150 10.3 * 100 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
