282
Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
Specialty
E-Z FORM™MP
Multipurpose Hose

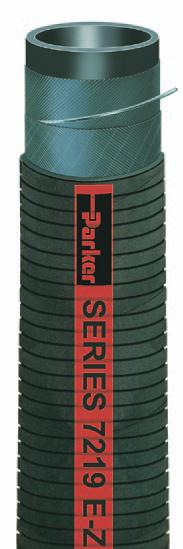

Series 7219
Series 7219 is an extremely fexible, lightweight, low pressure oil suction/return hose and
vehicle fuel fll connector line—as well as a suction and discharge hose for refned fuels
such as biodiesel (to B20 in dedicated and non-dedicated service), diesel, ethanol and
gasoline. Te lightweight Greek corrugated hose construction incorporates a wire helix
that provides full suction capability, superior kink resistance, minimal force-to-bend and
a path to conduct a static electrical charge to ground. Te unique Greek corrugations are
tightly pitched and precision-engineered, providing extreme fexibility and kink resistance
compared to the traditional rounded corrugation profle. Te cover is resistant to oil and
weathering. Series 7219 is capable of being routed through confned spaces where formed
hose might normally be required.
NOTES:
• Do not use in fuel dispensing or service applications requiring API, NFPA, UL,
ULC or any other agency approval or listing.
• Refer to the table on pages 213-214 for fuel compatibility and service conditions.
• Do not drag across sharp edges or highly abrasive surfaces.
• For E-Z FORM
™
coolant, vacuum and water hose, refer to Series 7395.
Tube:
Black nitrile
Reinforcement:
Mutliple textile plies with wire helix
Cover:
Black chloroprene; Greek corrugated fnish
Temp. Range:
-20°F to +200°F (-29°C to +93°C)
Brand Method:
Black text on red stripe
Brand Example:
PARKER SERIES 7219 E-Z FORM™ MP HOSE 75 PSI MAX WP
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• Biodiesel (to B20 in dedicated and non-dedicated service), diesel,
ethanol, gasoline, oil
• Oil suction/return lines; vehicle fuel fll connector lines; drain lines
• Buses, cranes, mobile off-road equipment
Vacuum:
Full
Packaging:
Coils
WARNING!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
(Continued on the following page)
