275
Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
PVC

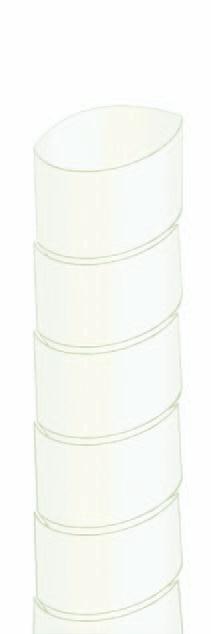

Series 475 – NEXWRAP Natural (White)
Part
Number
ID
(in)
ID
(mm)
Wall
(in)
Wall
(mm)
Recommended
Harness Dia
Approx
Wt
Per Pkg
(lbs)
Approx
Wt
Per Pkg
(kgs)
Std Pack
Qty
(ft)
Stock
Status
**
(USA)
Min
(in)
Max
(in)
475-06000704
3/8
9.5
0.062
1.6
3/16
1
24.00 10.88 1000
N
475-08000504
1/2
12.7 0.062
1.6
5/16
1-1/2 18.00 8.16
500
N
475-12000501
3/4
19.1 0.062
1.6
1/2
1-1/2 36.00 16.33
500
N
475-16000401
1
25.4 0.125
3.2
3/4
2
56.00 25.40
400
N
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
NEXWRAP
Spiral Wrap Chafe Guard
Series 475
Series 475 protects bundles of cable, hose or wire from abrasion and chemical
attack and enables easy and fexible routing of multiple lines without
removing end terminals or couplings. Te lightweight chafe guard installs
easily, individual lines can be removed or replaced easily and the open
corrugations permit individual items to exit the bundle at any point in the
harness.
NOTE:
Other colors are available. Contact Parker.
Material:
Black or white linear low density polyethylene (LLDPE)
Temp. Range:
-50°F to +140°F (-45°C to +60°C)
Brand Method:
Not branded
Industry Standards:
None applicable
Applications:
• Hose and tubing bundling, wire harness
• Resin infusion (manufacturing with fberglass injection)
• Assembly lines, fabrication shops, general industrial,
manufacturing
Packaging:
Reels, spools

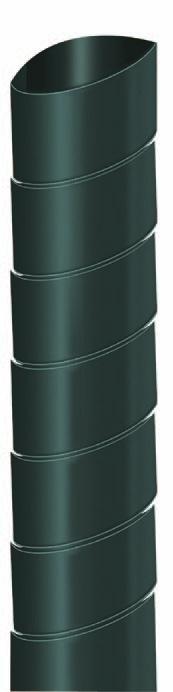

Series 475 – NEXWRAP (Black)
Part
Number
ID
(in)
ID
(mm)
Wall
(in)
Wall
(mm)
Recommended
Harness Dia
Approx
Wt
Per Pkg
(lbs)
Approx
Wt
Per Pkg
(kgs)
Std Pack
Qty
(ft)
Stock
Status
**
(USA)
Min
(in)
Max
(in)
475-06008704
3/8
9.5
0.062
1.6
3/16
1
24.00 10.89 1000
N
475-08008504
1/2
12.7 0.062
1.6
5/16
1-1/2 18.00 8.16
500
N
475-12008501
3/4
19.1 0.062
1.6
1/2
1-1/2 36.00 16.33
500
N
475-16008401
1
25.4 0.125
3.2
3/4
2
56.00 25.40
400
N
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
