PVC
NEXAQUA
Potable Water Hose
FDA, RoHS
(USP CLASS VI and NSF 51 – Series 162 only)
Series 162 and Series 164

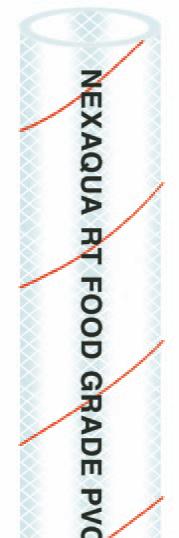

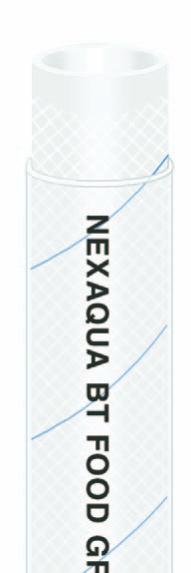

Series 162 and 164 are designed as lightweight, reinforced PVC hoses for
potable water. Each features a spiral tracer yarn (Series 162 red/Series 164
blue) for color-coded identifcation. Series 164 incorporates a white tube to
inhibit growth of algae. Te all-PVC hose construction is resistant to abrasion,
weathering and ultraviolet light.
Tube:
Series 162:
Clear PVC
Series 164:
White PVC
Reinforcement:
Series 162:
Multiple textile plies with red tracer
Series 164:
Multiple textile plies with blue tracer
Cover:
Clear PVC; smooth fnish
Temp. Range:
+25°F to +150°F (-5C to +65°C)
Working pressures are at +68°F (+20°C). Higher
temperatures reduce the available working pressure.
See temperature/pressure chart on page 445.
Brand Method:
Black ink
Brand Example:
Series 162:
NEXAQUA RT FOOD GRADE PVC BY
PARKER NEXGEN
®
(P/N) (ID) X (OD) NSF-51 MAX TEMP
150F (65C) CANADA DATE CODE
Series 164:
NEXAQUA BT FOOD GRADE BY PARKER
NEXGEN
®
(P/N) (ID) X (OD) MAX WP 150 PSI AT 68F (20C)
CANADA DATE CODE
Industry Standards:
• Series 162 (only) NSF 51 listed to maximum temperature
180°F (82°C)***
• Series 162 and 164 FDA ingredients***
• Series 162 and 164 RoHS compliant
Applications:
• Potable water
• Air, mild chemicals
Packaging:
Coils
WARNINGS!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
Working pressures are at +68°F (+20°C). Higher temperatures reduce the available working pressure. See temperature/pressure chart on
page 445.
!
!
