PVC
NEXBRAID
®
Clear PVC Hose
FDA, NSF 51, USP Class VI
Series 125 (Standard Wall) /
Series 126 (Heavy Duty)
Series 125 (standard wall) and Series 126 (thick wall) are fexible PVC transfer
hoses for dry abrasive materials such as grains, granules, pellets and powders;
beverages and potable water; non-fatty and non-oily foods; and sanitary
products. Te hoses feature a smooth tube that is abrasion resistant and will
not impart taste or odor, and allows full-fow, while the clear PVC construction
permits visual observation of materials being conveyed. Series 125 and Series
126 also provide excellent general industrial service in air breathing supply
pneumatics, fexible conduit, harness and light vacuum applications.
Tube:
Clear PVC
Reinforcement:
Multiple textile plies
Cover:
Blue tint PVC; smooth fnish
Temp. Range:
+25°F to +150°F (-5°C to +65°C)
Working pressures are at +68°F (+20°C). Higher
temperatures reduce the available working pressure.
See temperature/pressure chart on page 445.
Brand Method:
Black ink
Brand Example:

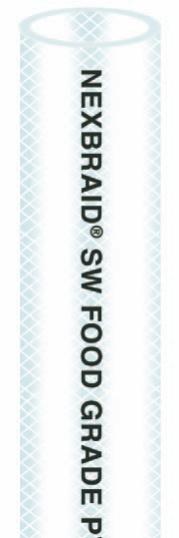

Series 125:
NEXBRAID
®
SW FOOD GRADE PVC BY
PARKER NEXGEN
®
(P/N) (ID) MAX WP XXX PSI AT 68F
(20C) NSF-51 MAX TEMP 150F (65C) CANADA (DATE
CODE)

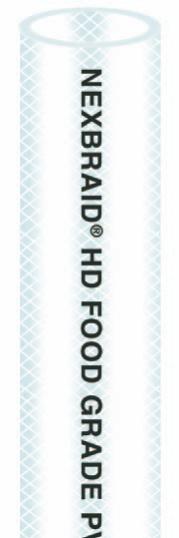

Series 126:
NEXBRAID
®
HD FOOD GRADE PVC BY
PARKER NEXGEN
®
(P/N) (ID) MAX WP XXX PSI AT 68F
(20C) NSF-51 MAX TEMP 150F (65C) CANADA (DATE
CODE)
Industry Standards:
• FDA ingredients***, NSF 51 certifed to 180°F (82°C)***,
USP Class VI Rated***
• EU: Meets requirements and amendments of Resolution
AP(89) for food contact
• RoHS Compliant
Applications:
• Beverages, potable water, pure water
• Dry abrasive materials, four, grains, granules, pellets,
powders, sugar
• Air, fexible conduit, light vacuum, wire harness
Vacuum:
Light
Packaging:
Coils
(Continued on the following page)
WARNINGS!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
Working pressures are at +68°F (+20°C). Higher temperatures reduce the available working pressure. See temperature/pressure chart on
page 445.
!
!
