NEXSPRAY U
Urethane /PVC Spray Hose
Series 202 (600 PSI) / Series 203 (800 PSI)
Series 202/203 is a high pressure spray hose designed to handle
diluted hydrocarbon-based chemicals, herbicides and pesticides. Te
longitudinally ribbed cover reduces drag and is resistant to abrasion,
ultraviolet light and weathering.
Tube: Black urethane / PVC
Reinforcement: Multiple textile plies
Cover: Green or yellow PVC; longitudinally ribbed fnish
Temp. Range: +25°F to +150°F (-5°C to +65°C)
Working pressures are at +68°F (+20°C). Higher
temperatures reduce the available working pressure.
See temperature/pressure chart on page 445.
Brand Method: Black ink
Brand Example: Series 202: NEXSPRAY U600 BY PARKER NEXGEN
(P/N) (ID) X (OD) MAX WP 600 PSI AT 68F (20C)
CANADA (DATE CODE)
Series 203: NEXSPRAY U800 BY PARKER NEXGEN
(P/N) (ID) X (OD) MAX WP 800 PSI AT 68F (20C)
CANADA (DATE CODE)
Industry Standards: None applicable
Applications: • Chemicals, herbicides, pesticides, water
• Agriculture, commercial lawn and garden
Vacuum: Not recommended
Packaging: Coils
WARNINGS!
„ Couplings attached with bands or clamps
may reduce the working pressure of the hose
assembly to less than the maximum rated
working pressure of the hose. Refer to the
NAHAD Industrial Hose Assembly Guidelines.
„ Working pressures are at +68°F (+20°C).
Higher temperatures reduce the available
working pressure. See temperature/pressure
chart on page 445.
!
!

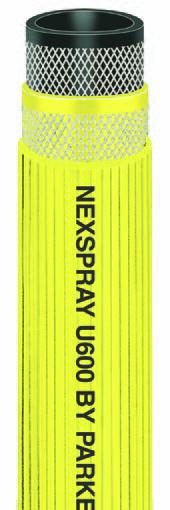

Series 202 — NEXSPRAY U600, 600 PSI, Yellow Ribbed Cover
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
Per Pkg
(lbs)
Approx
Wt
Per Pkg
(kgs)
Max
Rec WP
@ 68°F
(psi)
Max
Rec WP
@ 20°C
(bar)
Perm
Cplg
Rec
*
Std Pack
Qty
(ft)
Stock
Status
**
(USA)
202-06002300 3/8 9.5 4 .655 16.6 38.00 17.24 600 41.4 * 300 N
202-06002400 3/8 9.5 4 .655 16.6 51.00 23.13 600 41.4 * 400 N
202-08002300 1/2 12.7 4 .840 21.3 60.00 27.22 600 41.4 * 300 N
202-08002400 1/2 12.7 4 .840 21.3 80.00 36.29 600 41.4 * 400 N
202-12002300 3/4 19.1 4 1.140 29.0 99.00 44.91 600 41.4 * 300 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
! !

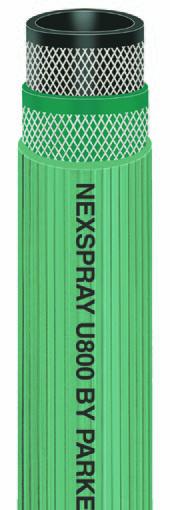

Series 203 — NEXSPRAY U800, 800 PSI, Green Ribbed Cover
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
Per Pkg
(lbs)
Approx
Wt
Per Pkg
(kgs)
Max
Rec WP
@ 68°F
(psi)
Max
Rec WP
@ 20°C
(bar)
Perm
Cplg
Rec
*
Std Pack
Qty
(ft)
Stock
Status
**
(USA)
203-06005300 3/8 9.5 4 .655 16.6 39.00 17.69 800 55.2 * 300 N
203-08005300 1/2 12.7 4 .840 21.3 60.00 27.22 800 55.2 * 300 N
203-10005300 5/8 15.9 4 .990 25.1 81.00 37.00 800 55.2 * 300 N
203-12005300 3/4 19.1 4 1.140 29.0 101.00 45.81 800 55.2 * 300 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
! !
