PVC
NEXSYN
F65 EPDM/ TPV Tubing
FDA, ANSI /NSF 61 Compliant Tube Compound

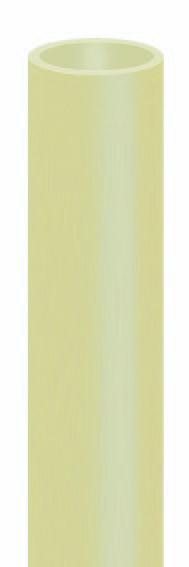

Series 714
Series 714 tubing is extruded to close tolerances using specially designed thermoplastic
vulcanizate (TPV) materials that perform like EPDM rubber. Te mechanical and
recovery properties are comparable to most vulcanized elastomers and superior to most
thermoplastic elastomers. Series 714 is 25–35% lighter than PVC and rubber tubing of
the same dimensions. Tis highly durable tubing is resistant to fex fatigue, ozone and
ultraviolet light, and has excellent resistance to a wide range of mild acids, alkalis and
chemicals.
Tube: Natural EPDM / TPV; 64A durometer
Temp. Range: -75°F to +180°F (-60°C to +82°C)
Working pressures are at +68°F (+20°C). Higher temperatures reduce the
available working pressure. See temperature/pressure chart on page 445.
Brand Method: Not branded
Industry Standards:• Complies to provisions of US FDA 21 CFR 177.1210 and 177.2600***
• Compound used is ANSI / NSF 61 certifed to maximum temperature
+212°F (+100°C)***
• Compound compliant to EU Directive 2003/11/EC
• RoHS Compliant – EU Directive 2002/95/EC
Applications: • Beverages, food, potable water; mild acids, alkalis and chemicals
• Drain lines, handle grips, light vacuum, peristaltic pumps
Vacuum: Light
Packaging: Cartons; coils
Part
Number
ID
(in)
ID
(mm)
Wall
(in)
Wall
(mm)
OD
(in)
OD
(mm)
Approx
Wt
Per Pkg
(lbs)
Approx
Wt
Per Pkg
(kgs)
Max
Rec WP
@ 68°F
(psi)
Max
Rec WP
@ 20°C
(bar)
Std Pack
Qty
(ft)
Stock
Status
**
(USA)
714-03060102 3/16 4.8 0.094 0.2 3/8 9.5 3.50 1.60 40 2.8 100 N
714-04070102 1/4 6.4 0.094 0.2 7/16 11.1 4.30 2.00 40 2.8 100 N
714-06090102 3/8 9.5 0.094 0.2 9/16 14.3 5.60 2.50 35 2.4 100 N
714-08120102 1/2 12.7 0.125 0.3 3/4 19.1 10.40 4.70 35 2.4 100 N
714-10140102 5/8 15.9 0.125 0.3 7/8 22.2 12.50 5.70 30 2.1 100 N
714-12160100 3/4 19.1 0.125 0.3 1 25.4 14.80 6.60 30 2.1 100 N
714-16200100 1 25.4 0.125 0.3 1-1/4 31.8 18.70 8.50 25 1.7 100 N
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
*** The TPV compound used in this tubing is ANSI/NSF 61 listed. All ingredients in the TPV compound are listed in the U.S. FDA CFR,
Title 21.
! !
WARNING! Working pressures are at +68°F (+20°C). Higher temperatures reduce the available working pressure. See temperature/
pressure chart on page 445.
!
