PVC
NEXCLEAR®
Clear PVC Tubing
FDA, NSF 51, USP Class VI
Series 100
Series 100 is fexible PVC tubing for beverages and potable water, non-fatty and non-oily
foods and sanitary products. Te tubing features a smooth interior that is abrasion resistant
and will not impart taste or odor, and allows full-fow. Te clear PVC construction permits
visual observation of materials being conveyed. Series 100 also provides excellent general
industrial service for low pressure air, distilled water, drain, laboratory, light vacuum, wine
and wire harness applications.
Tube: Clear PVC, 75A durometer
Temp. Range: +25°F to +150°F (-5°C to +65°C)
Working pressures are at +68°F (+20°C).
Higher temperatures reduce the available working pressure. See
temperature/pressure chart on page 445.

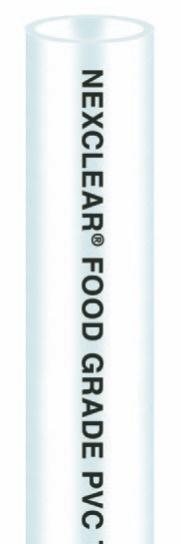

Brand Method: Black ink
Brand Example: NEXCLEAR ® FOOD GRADE PVC TUBING BY PARKER NEXGEN ® (P/N)
(ID) X (OD) NSF-51 MAX TEMP 150F (65C) CANADA (DATE CODE)
Industry Standards:• FDA ingredients***, NSF 51 certifed to 180°F (82°C)***, USP Class VI
Rated Materials***
• RoHS Compliant, US Government A-A-52047 Type VI Compiant
• EU: Meets requirements and amendments of Resolution AP(89) for
food contact
Applications: • Beverages, potable and pure water, wine
• Air, drain, light vacuum, wire harness
• General industrial, laboratories, wineries
Vacuum: Light
Packaging: Coils
(Continued on the following page)
WARNING! Working pressures are at +68°F (+20°C). Higher temperatures reduce the available working pressure. See temperature/
pressure chart on page 445.
!
Part
Number
ID
(in)
ID
(mm)
Wall
(in)
Wall
(mm)
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
@ 68°F
(psi)
Max
Rec WP
@ 20°C
(bar)
Std Pack
Qty
(ft)
Stock
Status
**
(USA)
100-01020502 1/16 1.6 0.031 0.8 1/8 3.2 0.02 0.01 50 3.4 500 N
100-02040102 1/8 3.2 0.062 1.6 1/4 6.4 0.02 0.01 65 4.5 100 Y
100-03040102 3/16 4.8 0.032 0.8 1/4 6.4 0.02 0.01 50 3.4 100 N
100-03050102 3/16 4.8 0.062 1.6 5/16 7.9 0.02 0.01 55 3.8 100 Y
100-03060102 3/16 4.8 0.094 2.4 3/8 9.5 0.04 0.02 60 4.1 100 N
100-04060102 1/4 6.4 0.062 1.6 3/8 9.5 0.04 0.02 55 3.8 100 Y
100-04070102 1/4 6.4 0.094 2.4 7/16 11.1 0.04 0.02 58 4.0 100 N
100-04080102 1/4 6.4 0.125 3.2 1/2 12.7 0.09 0.04 60 4.1 100 Y
100-05070102 5/16 7.9 0.062 1.6 7/16 11.1 0.04 0.02 50 3.4 100 Y
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
*** All compound ingredients used in this tubing are listed in the US FDA CFR, Title 21. Tubing NSF 51 Listed. Compound USP Class
VI rated.
! !
