Petroleum – LPG
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7170-25354
1/4 6.4 4 0.610 15.5 0.16 0.07 2.5 63.5 350 24.1 7661 750 Y
7170-38354
3/8 9.5 4 0.760 19.3 0.22 0.10 3.5 88.9 350 24.1 HY 600 Y
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.

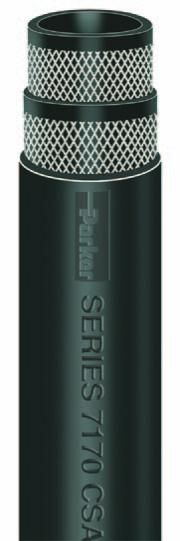

LP Gas Hose
UL569, CSA
Series 7170
Series 7170 is a fexible, lightweight hose connector for transfer of liquefed petroleum gas
(LPG)/propane in barbecue grills, portable heaters, weed burning apparatus and similar
appliances. Te hose meets all Underwriters Laboratories (UL569) and Canadian Standards
Association (CSA) requirements. Te construction incorporates multiple textile plies of
reinforcement for fexibility and kink resistance. Te perforated cover is resistant to mild
chemicals, oil and ozone.
NOTE:
Refer to the Safety and Technical section of this catalog for safety, handling and use
information.
Series 7170 and Natural Gas:
Te molecules of natural gas are small, enhancing their
ability to permeate through standard rubber hose constructions. Te permeation process is
more rapid as the working pressure increases, and natural gas accumulates with potentially
dangerous consequences. Series 7170 may be used for natural gas service, but ONLY under
ALL of the following conditions:
• Te application must be in a well-ventilated environment: Outdoors, or indoors with
signifcant continuous air movement.
• Series 7170 is not to replace fxed/rigid pipe where that material is more appropriate
due to reduced permeation and overall strength and durability. Use rigid pipe, non-
permeable tubing or hose with barrier constructions to convey natural gas whenever
possible.
Series 7170 and Compressed Natural Gas (CNG):
Series 7170 is not for used in any CNG
application, including fuel dispensing, on-board vehicle fuel lines, or fuel transfer.
Tube:
Nitrile
Reinforcement:
Multiple textile plies
Cover:
Black chloroprene; perforated smooth fnish
Temp. Range:
-40°F to +180°F (-40°C to +82°C) (The hose construction is capable of
this rating, but LP Gas should NEVER be conveyed over 140°F/60°C)
Brand Method:
Impression
Brand Example:
PARKER SERIES 7170 (ID) CSA
®
CAN 1-8.1 - CAUTION - LP GAS HOSE
5 PSI/350 PSI C U
®
US MH11955 MADE IN USA (DATE CODE)
Design Factor:
5:1
Industry Standards:
UL569; CAN/CGA-8.1-M86 Type I
Applications:
• LP gas/propane
• Cookers, grills, heaters, weed burners, small appliances
• Consumer, general industrial
Vacuum:
Not recommended
Compare to:
Thermoid Type 75
Packaging:
Reels
R
WARNING!
Use only with couplings qualifed by Parker. Do not use with male swivel couplings or other couplings containing
o-rings, which may dry out, crack and fail over time.
!
