Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
Petroleum – LPG
LP Gas Hose
Stainless Steel Reinforced
UL21, CGA Type I

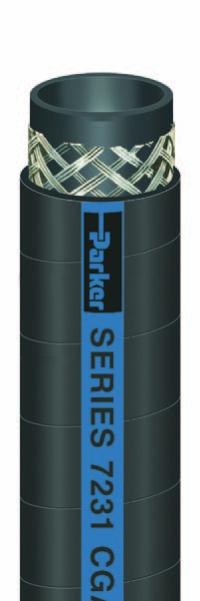

Series 7231
Series 7231 is a large diameter, extremely durable liquefed petroleum gas (LPG)/propane
transfer hose for bulk loading/unloading and vibration-resistant onboard vehicle connections.
Te hose meets all Underwriters Laboratories (UL21) requirements and Canadian Gas
Association (CGA Type I) requirements. Te construction incorporates high tensile corrosion
resistant stainless steel braided reinforcement for superior strength, durability and kink
resistance. Te perforated cover is resistant to mild chemicals, oil and ozone. Series 7231 is
available in long lengths and factory-tested assemblies in popular confgurations.
NOTE:
Refer to the Safety and Technical section of this catalog for safety, handling and use
information.
Series 7231 and DOT:
LPG hose assemblies installed on on-road vehicles must meet
Department of Transportation (DOT) requirements. Factory assemblies (all sizes) are pressure
tested, one of the fttings is etched with a unique DOT certifcation number, and a document
incorporating the identical certifcation number accompanies each assembly. Metal DOT
identifcation bands are also available/attached for an additional charge at customer request.
Contact Parker.
Series 7231 and Natural Gas:
Te molecules of natural gas are small, enhancing their ability to
permeate through standard rubber hose constructions. Te permeation process is more rapid
as the working pressure increases, and natural gas accumulates with potentially dangerous
consequences. Series 7231 may be used for natural gas service, but ONLY under ALL of the
following conditions:
• Te application must be in a well-ventilated environment: Outdoors, or indoors with
signifcant continuous air movement.
• Series 7231 is not to replace fxed/rigid pipe where that material is more appropriate due
to reduced permeation and overall strength and durability. Use rigid pipe, non-permeable
tubing or hose with barrier constructions to convey natural gas whenever possible.
Series 7231 and Compressed Natural Gas (CNG):
Series 7231 is not to be used for any CNG
application, including fuel dispensing, on-board vehicle fuel lines, or fuel transfer.
Series 7231 and Anhydrous Ammonia (NH
3
):
Series 7231 is not for use with anhydrous
ammonia.
Tube:
Black nitrile
Reinforcement:
One or multiple stainless steel braids
Cover:
Black chloroprene; perforated wrapped fnish
Temp. Range:
-40°F to +180°F (-40°C to +82°C) (The hose construction is capable of this
rating, but LP Gas should NEVER be conveyed over 140°F/60°C)
Brand Method:
Black text on blue stripe
Brand Example:
PARKER SERIES 7231 CGA TYPE I CAUTION - LP GAS HOSE MH6737 C
U
®
US ISSUE NO.XXXX 350 PSI MAX WP MADE IN USA (DATE CODE)
Design Factor:
5:1
Industry Standards:
UL21; CAN/CGA-8.1-M86 Type I; optional DOT factory hose assembly
testing and marking available. Contact Parker.
Applications:
• LP gas/propane
• Bulk loading/unloading; in-plant tank transfer
• Petrochemical refneries
Vacuum:
Not recommended
Packaging:
Cartons
R
(Continued on the following page)
