190 Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH South Gate, CA
Eastern USA Western USA
www.safehose.com
e-mail: indhose@parker.com
Petroleum – Dispenser
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7174-75052 3/4 19.1 2 1.063 27.0 0.29 0.13 5.0 127.0 50 3.4 * 400 Y
7174-100052 1 25.4 2 1.375 34.9 0.45 0.20 8.0 203.2 50 3.4 * 300 Y
Factory Assemblies: Available in popular confgurations. See next page.
* Couplings: Bulk farm pump hose couplings couplings are not sold separately. Refer to CrimpSource at www.safehose.com for other
coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.

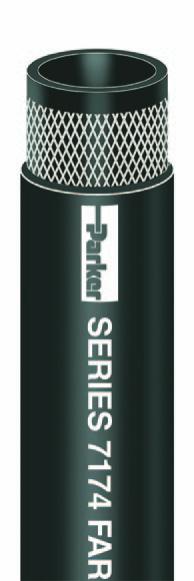

Farm Pump /Gravity Tank Fuel Hose
No Static Wire
Not UL Listed
Series 7174
Series 7174 is designed for low pressure gravity fow dispensing or transfer of refned fuels
such as biodiesel (to B20 in dedicated service), diesel, ethanol, gasoline and oil from drums,
gravity feed farm pumps, hand pumps, skid tanks and storage tanks where Underwriters
Laboratories (UL) listing is not required. Te softwall construction incorporates multiple
textile plies of reinforcement for fexibility. Te cover is resistant to abrasion, oil and ozone.
NOTES:• Do not use with powered pumps.
• Refer to the table on pages 213-214 for fuel compatibility and service conditions.
• Refer to the Safety and Technical section of this catalog for safety, handling and
use information.
Tube: Black nitrile
Reinforcement: Multiple textile plies
Cover: Black chloroprene; smooth fnish
Temp. Range: -40°F to +180°F (-40°C to +82°C)
Brand Method: White ink
Brand Example: PARKER SERIES 7174 FARM PUMP / GRAVITY TANK FUEL HOSE
(ID) XX PSI MAX WP MADE IN USA (DATE CODE)
Design Factor: 4:1
Applications: • Biodiesel (to B20 in dedicated service), diesel, ethanol, gasoline, oil
• Gravity tanks, hand pump dispensers
• Agriculture
Vacuum: Not recommended
Compare to: Thermoid Premier Farm Tank, Veyance Aggie Gas
Packaging: Reels
WARNINGS!
„ Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
„ Do not use Parker farm pump hose for aircraft fueling or service station applications. Use only API/NFPA qualifed hose for aircraft fueling
applications. Use only UL330 listed hose for service station applications.
!
(Continued on the following page)
