Petroleum – Dispenser
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7175-75052 3/4 19.1 2 1.112 28.2 0.35 0.16 5.0 127.0 50 3.4 * 400 N
7175-100052 1 25.4 2 1.390 35.3 0.48 0.22 8.0 203.2 50 3.4 * 300 N
Factory Assemblies: Available in popular confgurations. See next page.
* Couplings: Bulk farm pump hose couplings are not sold separately. Refer to CrimpSource at www.safehose.com for other coupling
recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.

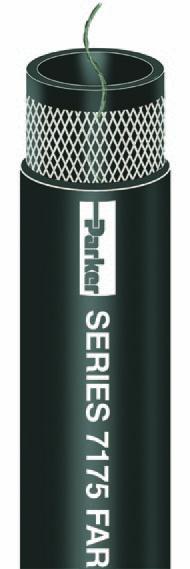

Farm Pump /Gravity Tank Fuel Hose
Static Wire
Not UL Listed
Series 7175
Series 7175 is designed for low pressure gravity fow dispensing or transfer of refned fuels
such as biodiesel (to B20 in dedicated service), diesel, ethanol, gasoline and oil from drums,
gravity feed farm pumps, hand pumps, powered pumps, skid tanks and storage tanks where
Underwriters Laboratories (UL) listing is not required. Te softwall construction incorporates
multiple textile plies of reinforcement for fexibility and a static wire as a path to conduct a
static electrical charge to ground. Te cover is resistant to abrasion, oil and ozone.
NOTES: • Refer to the table on pages 213-214 for fuel compatibility and service conditions.
• Refer to the Safety and Technical section of this catalog for safety, handling and
use information.
Tube: Black nitrile
Reinforcement: Multiple textile plies with static wire
Cover: Black chloroprene; smooth fnish
Temp. Range: -40°F to +180°F (-40°C to +82°C)
Brand Method: White ink
Brand Example: PARKER SERIES 7175 FARM PUMP HOSE W/STATIC WIRE
(ID) XX PSI MAX WP MADE IN USA (DATE CODE)
Design Factor: 4:1
Applications: • Biodiesel (to B20 in dedicated service), diesel, ethanol, gasoline, oil
• Gravity tanks, hand pumps, powered pumps
• Agriculture
Vacuum: Not recommended
Compare to: Thermoid Premier Farm Tank
Packaging: Reels
WARNINGS!
„ Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
„ Do not use Parker farm pump hose for aircraft fueling or service station applications. Use only API/NFPA qualifed hose for aircraft fueling
applications. Use only UL330 listed hose for service station applications.
!
(Continued on the following page)
