Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
Food & Beverage
TITANFLEX
®
Corrugated Chemical and Food Suction Hose
UHMWPE Tube
FDA, USDA, 3-A

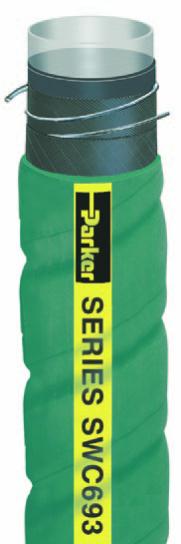

Series SWC693
Series SWC693 is an extremely fexible, high pressure, high temperature suction and
discharge hose designed to handle approximately 98% of commonly used acids,
chemicals and solvents as well as food, pharmaceutical and sanitary materials. Te hose is
manufactured using polished stainless steel mandrels for an ultra-smooth tube that will not
impart taste or odor. Te ultra high molecular weight polyethylene (UHMWPE) tube meets
FDA, USDA and 3-A requirements and will not leach into and contaminate the product
being conveyed. Te lightweight corrugated hose construction incorporates a dual wire
helix that provides full suction capability, superior kink resistance, minimal force-to bend
and a path to conduct a static electrical charge to ground. Te cover is resistant to abrasion,
mild chemicals and ozone.
NOTE:
Refer to the Safety and Technical section of this catalog for safety, handling and
use information. Refer to the Chemical Guide section of this catalog to determine
compatibility with specifc chemicals. Contact Parker for additional chemical
compatibility information.
Tube:
Translucent ultra high molecular weight polyethylene (UHMWPE)
Reinforcement:
Multiple textile plies with dual wire helix
Cover:
Green EPDM; corrugated wrapped fnish
Temp. Range:
-40°F to +250°F (-40°C to +121°C)
Brand Method:
Black text on yellow stripe
Brand Example:
PARKER SERIES SWC693 TITANFLEX
®
UHMWPE CHEMICAL SUCTION
HOSE XXX PSI MEETS FDA MADE IN USA
Design Factor:
4:1
Industry Standards:
FDA, USDA, 3-A
Applications:
• Non-fatty and non-oily foods and liquids, potable water, sanitary
products
• Acids, chemicals, solvents
• In-plant and tank transfer, delivery, transport
Vacuum:
Full
Packaging:
Coils
WARNINGS!
It is the responsibility of the user to determine if the hose is suitable for the application. Most chemical resistance guides are based on
temperatures of 70°F (21°C). Elevated temperatures can change the chemical resistance ratings. Many chemicals will become more
aggressive as temperatures increase, reducing the ability of hose compounds to withstand them. Contact Parker for chemical compatibility
data at elevated temperatures. If no data exists, users are required to perform compatibility testing at the desired temperature.
At operating temperatures of 125°F (52°C) and above, only permanently attached couplings should be installed. At any operating
temperature, couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum
rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
Do not use with internally expanded couplings. Refer to chemical hoses that incorporate a MXLPE tube.
!
(Continued on the following page)
